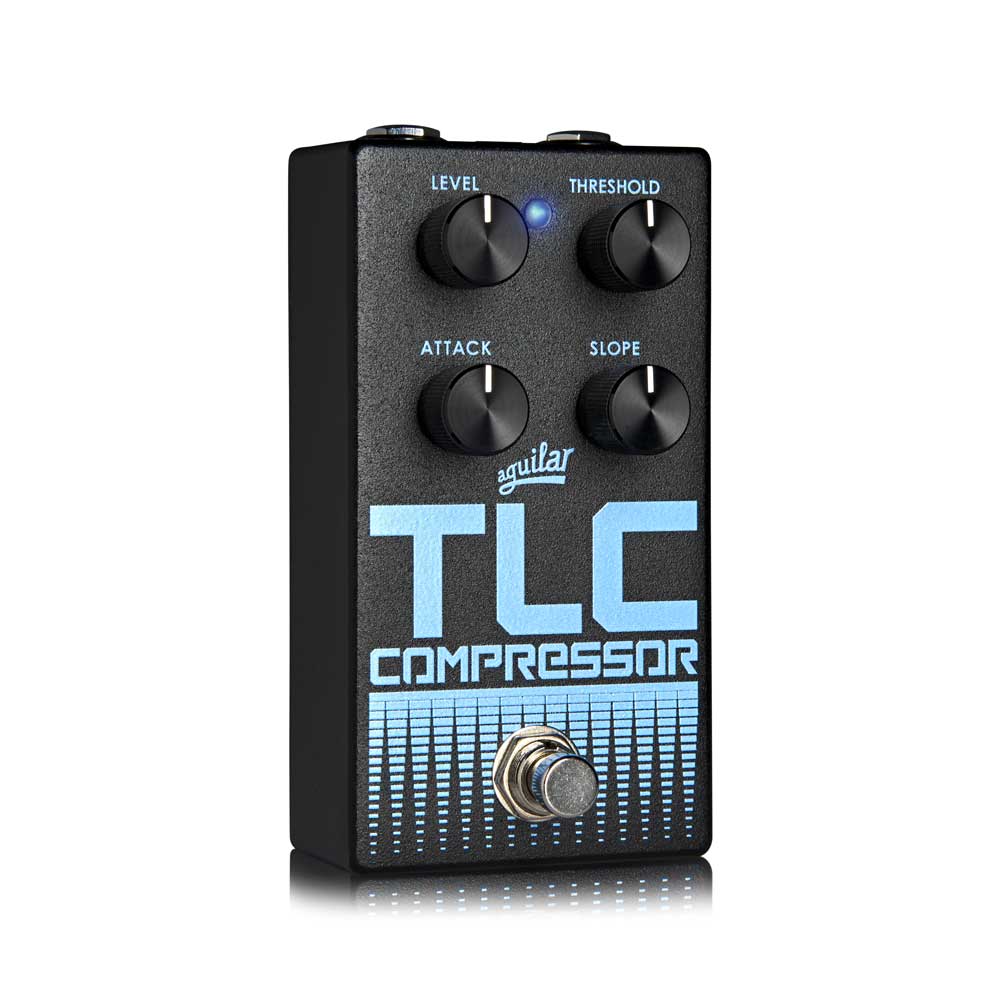

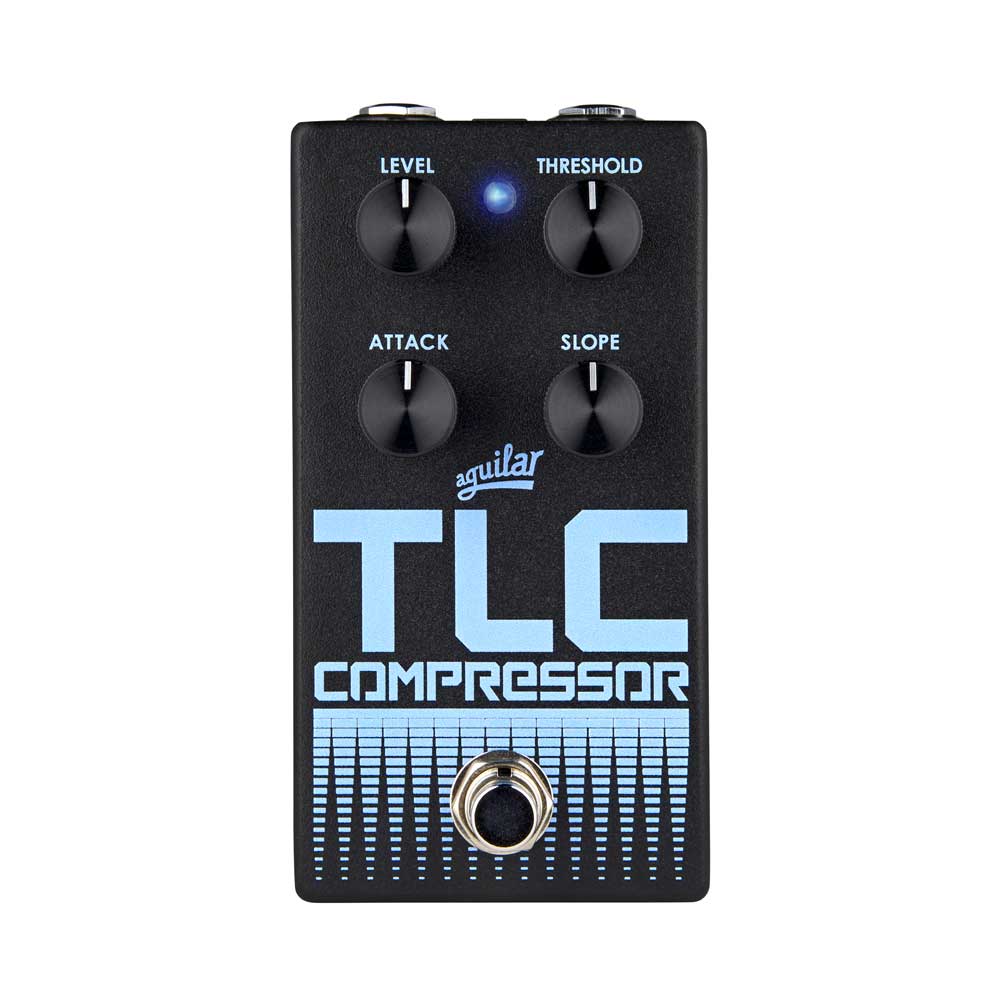

Aguilar TLC v2 Compressor Pedal
Aguilar TLC v2 Compressor Pedal
New look for 2023, same great compressor pedal!
The TLC Compressor is designed to give musicians the ability to control their dynamics in a flexible and musical way, making it an invaluable musical tool for both recording and live use. Our proprietary Trans Linear Control (TLC) circuit enables you to achieve unprecedented levels of performance, usually found only in expensive studio compressors.
The TLC Compressor ® features a four-knob layout to provide a full set of important features. Using a wide range of attack times and variable threshold and slope levels, you’ll be able to dial in your preferred amount and style of compression.
FEATURES
- Threshold control: variable from -30 to -10 dBu
- Slope control: variable from 2:1 to infinity
- Attack control: variable from 10ms to 100ms
- Level control: -infinity to -3dBu
- Low Distortion: (<0.2 %)
- Inputs: One 1/4″ jack
- Outputs: One 1/4″ jack
- Power: 9v power supply
- Warranty: Three year limited
FUNCTIONS
- Level - Controls the volume of the output signal.
- Threshold - Sets the input level at which compression begins.
- Attack – Sets the amount of time before compression begins after a note is played. Slope - Controls the compression ratio.
- Engage - Toggles between on and off. The blue LED indicates that the effect is on.
SPECIFICATIONS
- Current consumption: 5mA
- Noise Level: -95 dBu ‘A’ weighted *
- Input impedance: 1M_ (Effect On)
- Output impedance: 1 K_
- Distortion: < 0.2% *+
- Maximum Output: +6dBu (1.6VRMS)
- Battery Power: 9V
- External DC Power: 9-10 VDC, center terminal negative
* = all knobs set to 12 o'clock
+ = nominal input of -20dBu
