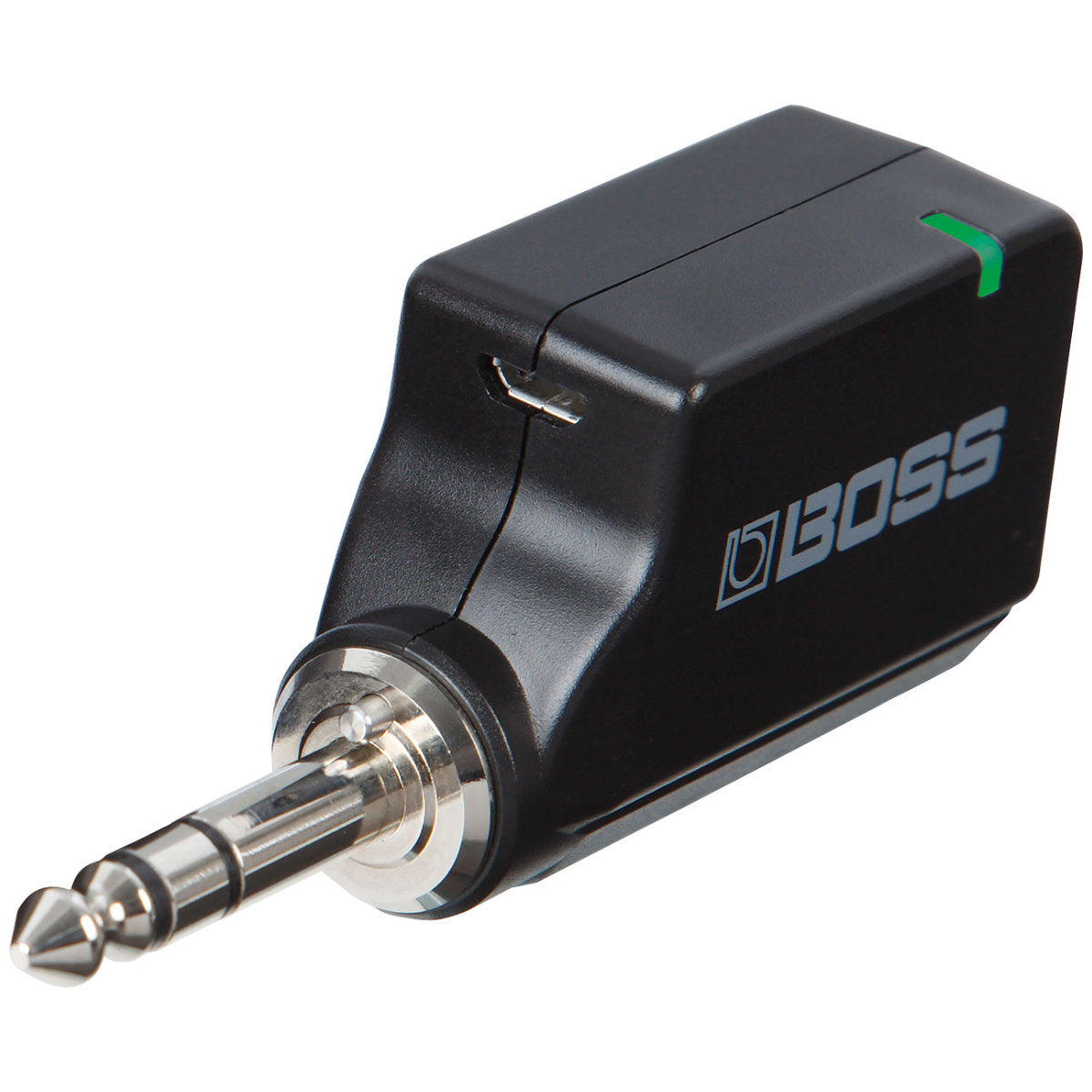

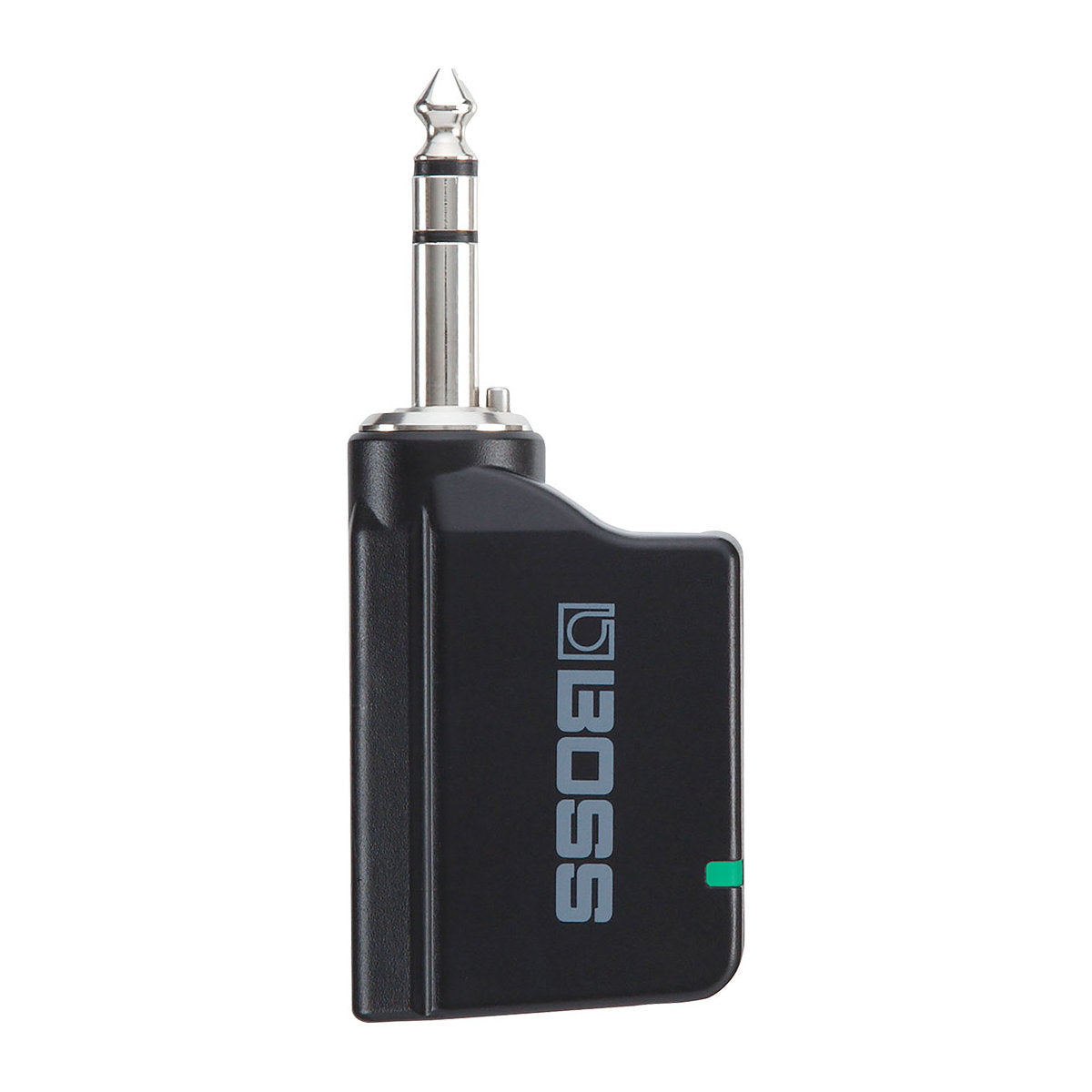

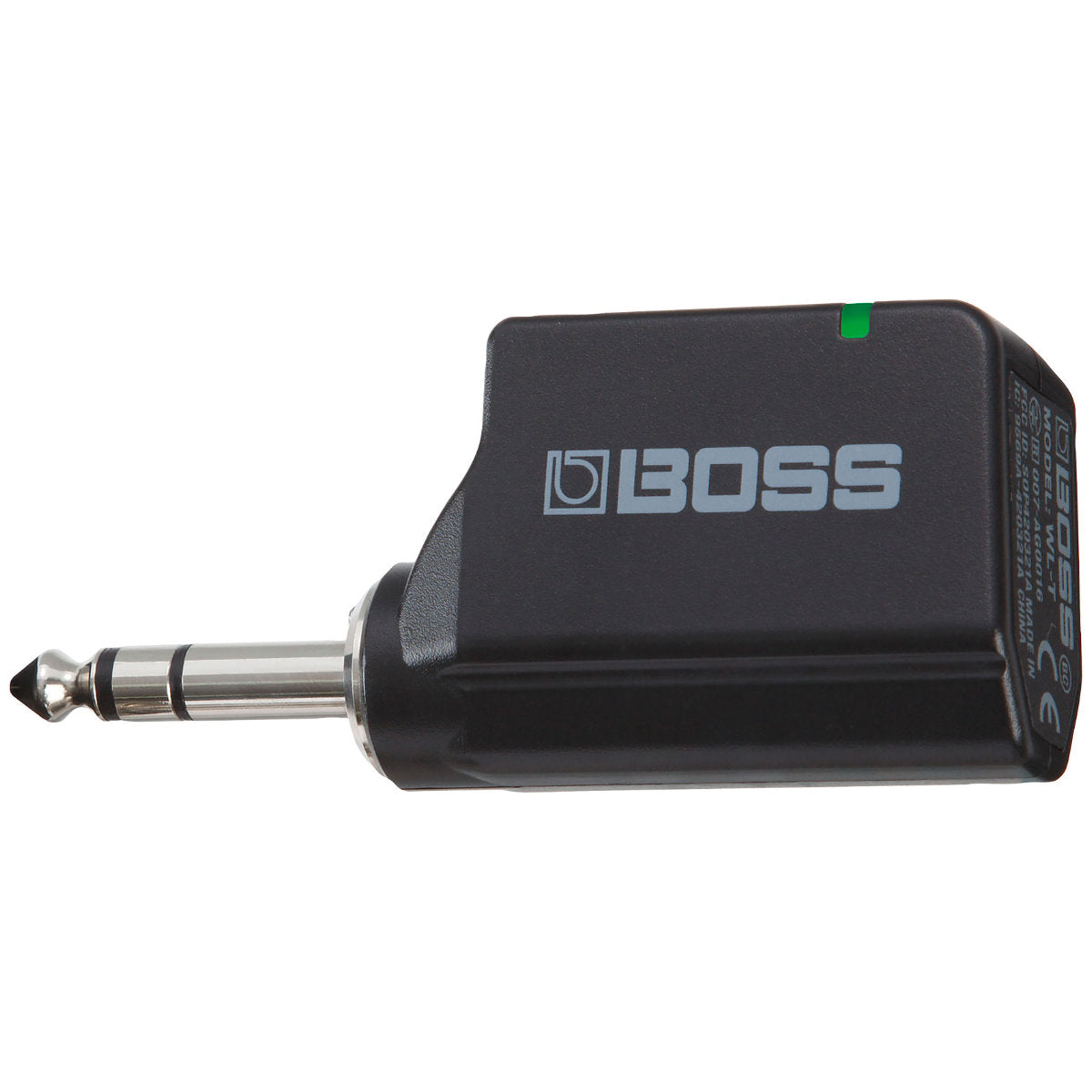

Boss WL-T Wireless Guitar Transmitter

Spare Transmitter for the WL Series, KATANA-AIR and WAZA-AIR

The WL-T Wireless Transmitter is compatible with WL-series wireless systems and the Katana-Air wireless guitar amp, providing a spare to use if your original transmitter is lost or damaged. When pre-charged, it also functions as a backup transmitter for live performances. To charge the WL-T’s built-in battery and establish a connection to your BOSS wireless receiver, simply follow the same procedures used with the original transmitter included with your system.

The WL-T works with the following BOSS wireless products: WL-20, WL-20L, WL-50, KATANA-AIR and WAZA-AIR

Note: The WL-T has no audio functionality as a standalone device. To transmit sound, it must be used in conjunction with the wireless receiver in one of the products listed above.

SPECIFICATIONS

• Nominal Input Level: -10 dBu (1 Mohms)
• Indicator: BATTERY
• Connectors: Input plug: 1/4-inch TRS phone type; DC IN 5 V port: USB Micro-B type
• Power Supply: Rechargeable lithium-ion battery; or Supplied from the DC IN 5 V port
• Current Draw: 350 mA
• Battery charging time: Approximately 3 hours
• Expected battery life under continuous use: Approximately 12 hours (These figures will vary depending on the actual conditions of use.)
• Accessories: Owner's Manual
• Applicable Models: KATANA-AIR, WAZA-AIR, WL-20, WL-20L, and WL-50
• Width: 87 mm / 3-7/16 inches
• Depth: 22 mm / 7/8 inches
• Height: 36 mm / 1-7/16 inches
• Weight: 43 g / 2 oz
