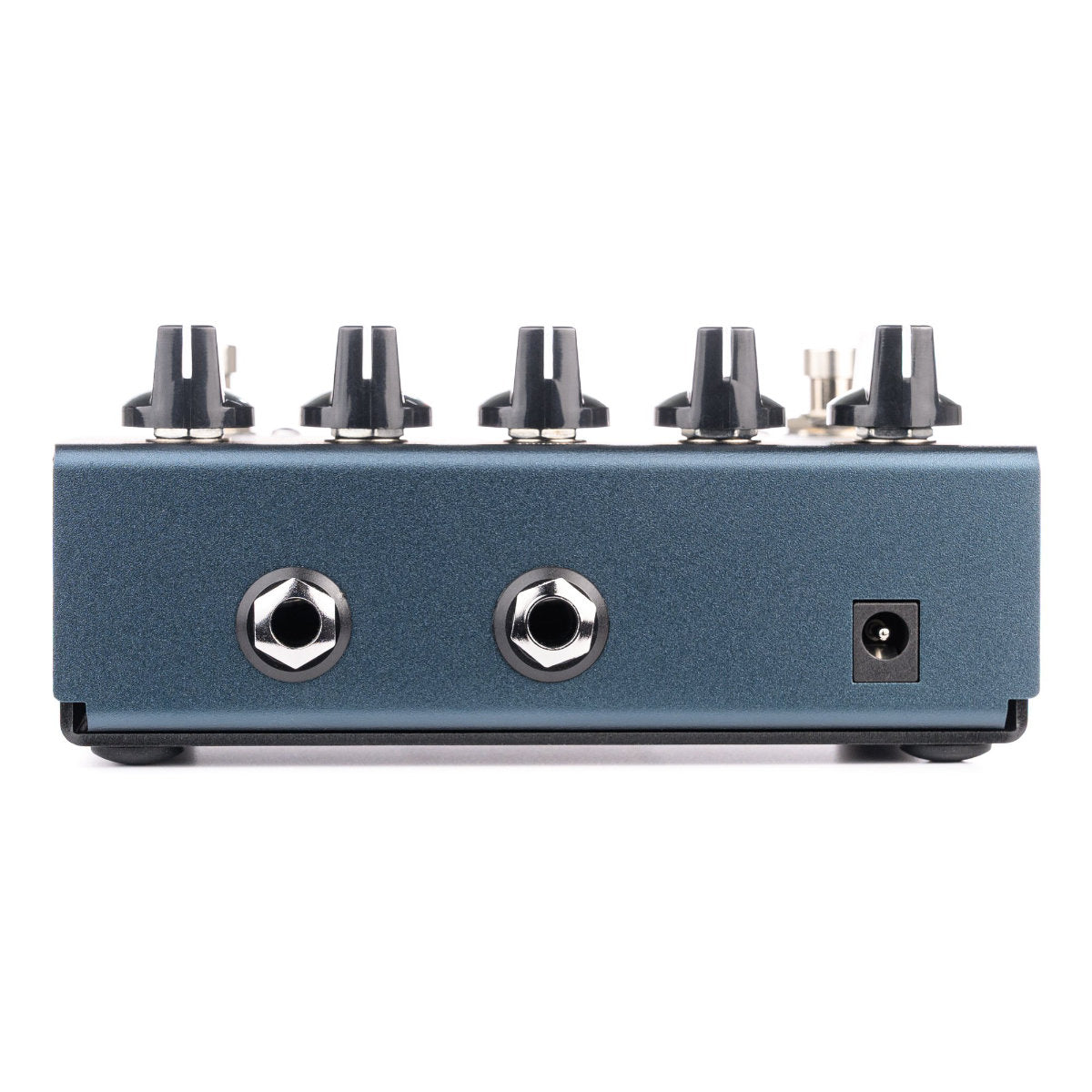

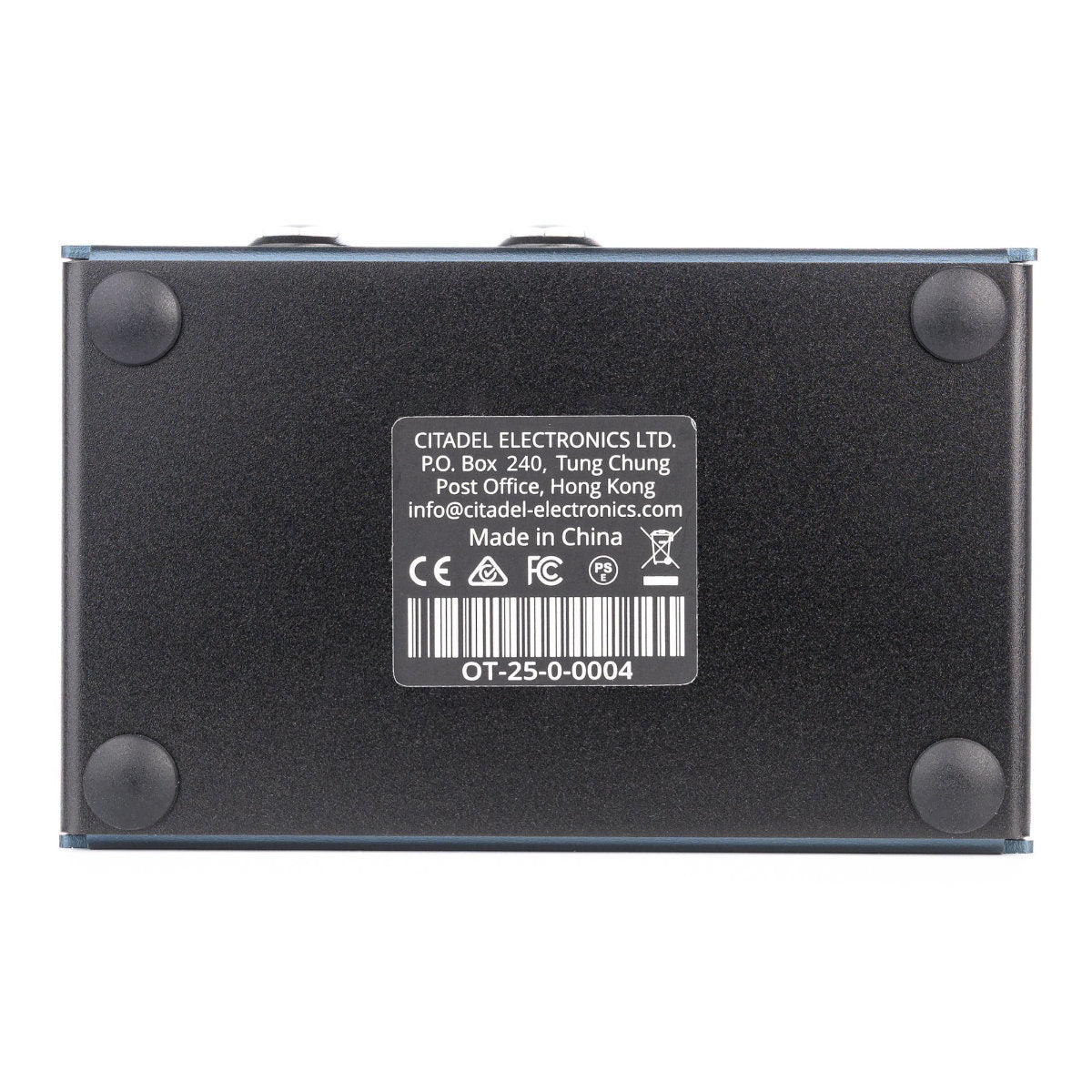

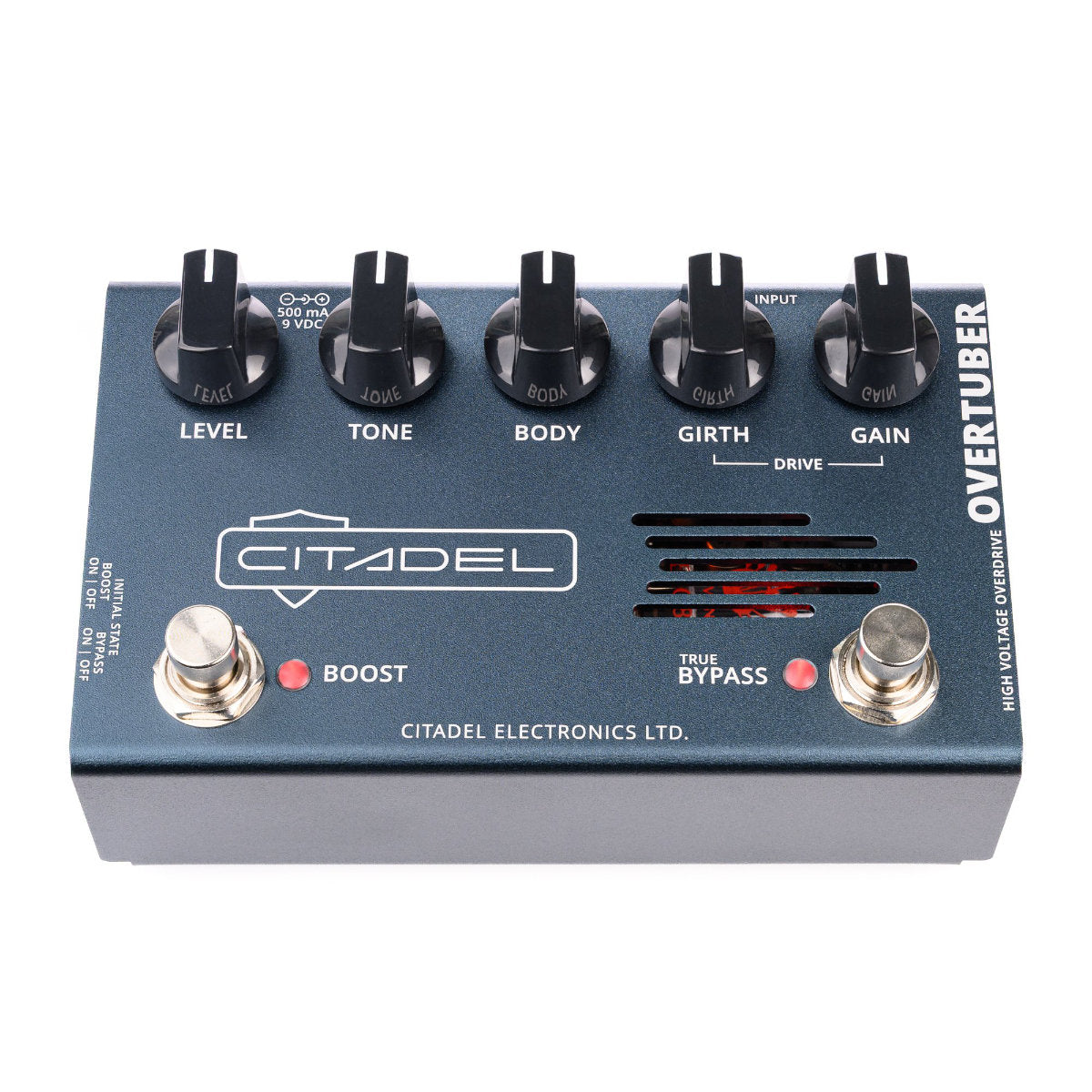

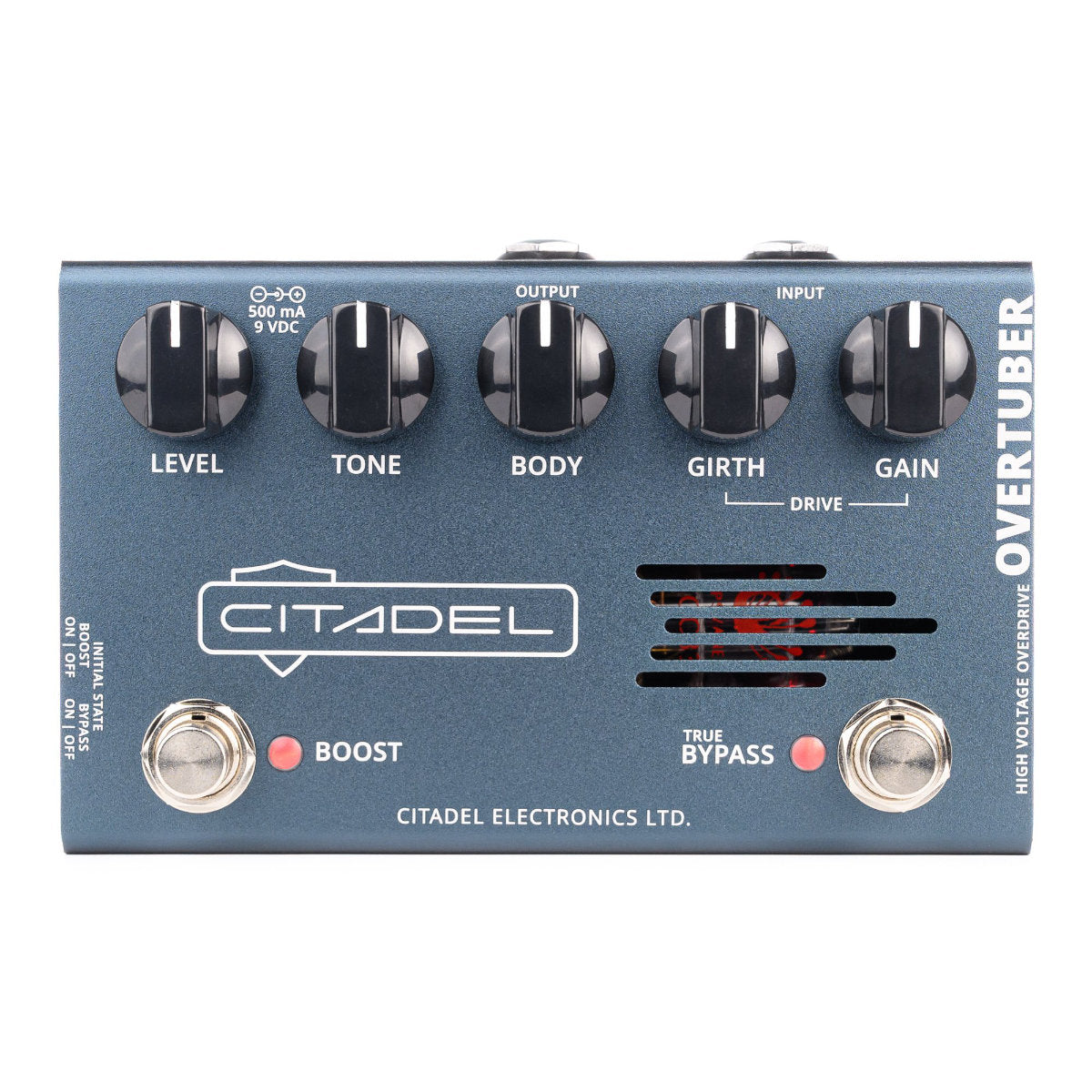

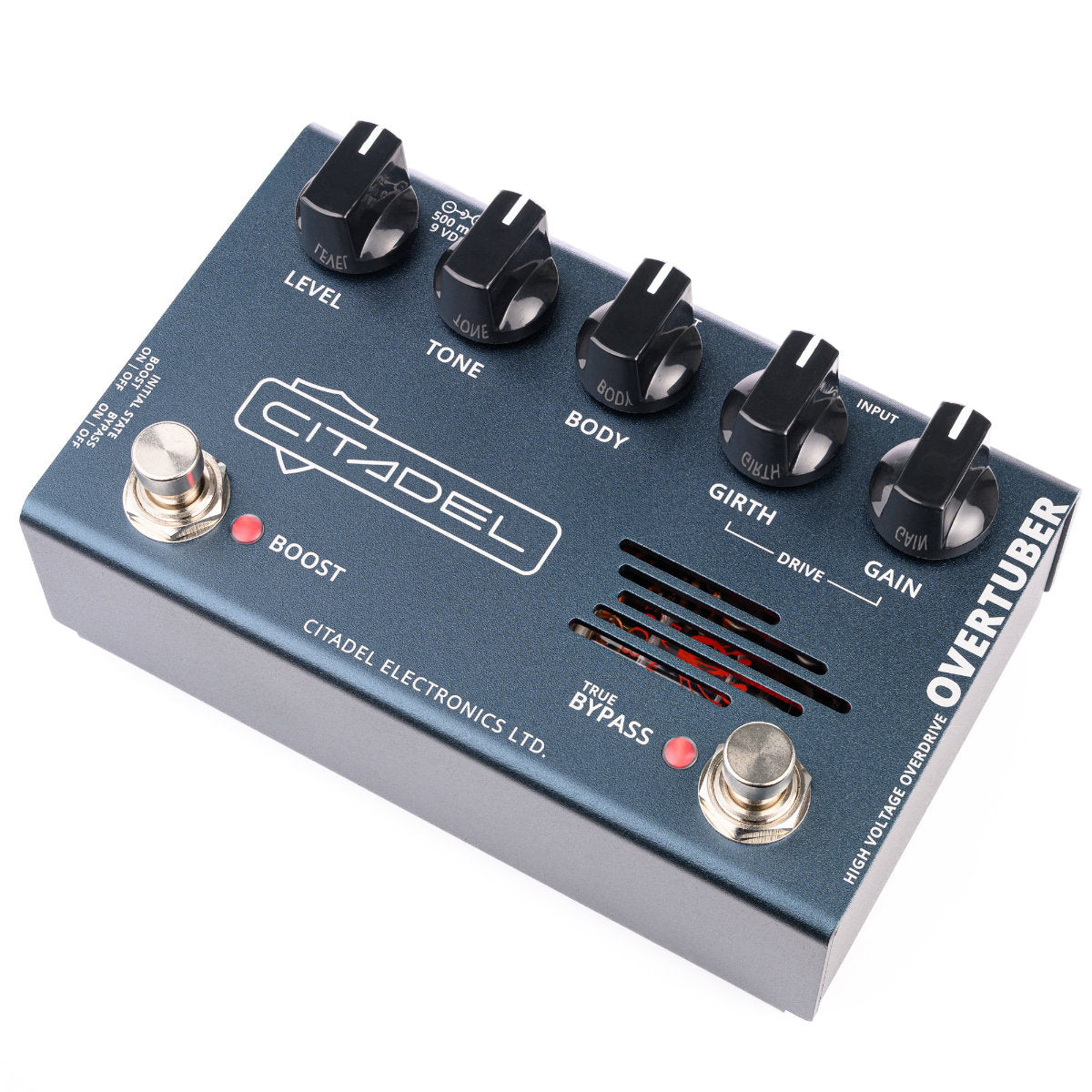

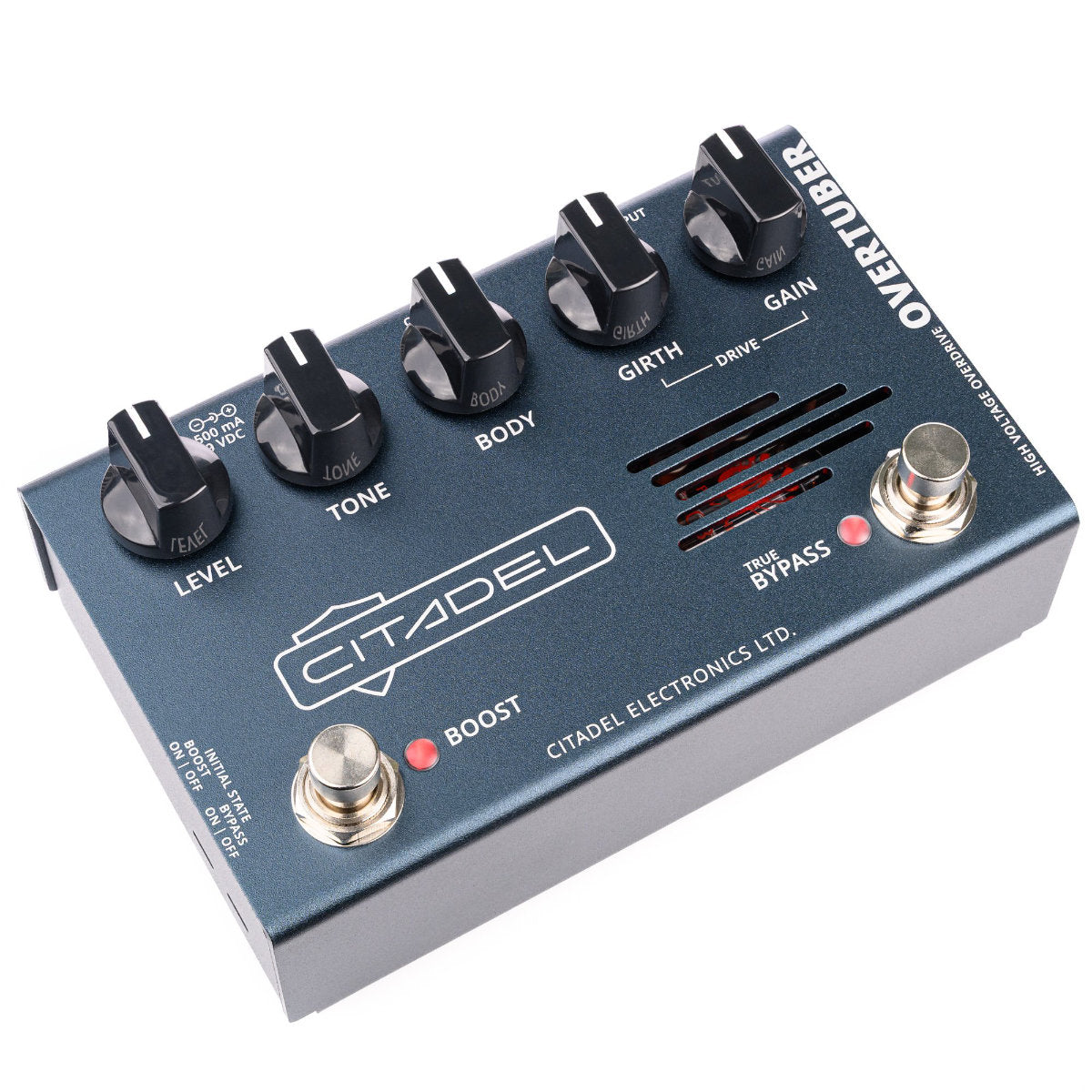

Citadel Overtuber High Voltage Overdrive Pedal

Overtuber is Citadel's interpretation of a classic tube driver pedal, designed to expand the tonal range by adding a high voltage ‘Boost’ mode. With Citadel's automatic bias topology, this pedal optimizes the performance of the preamp tube, delivering consistent harmonics and dynamics to the sound.

CONTROLS

• LEVEL controls the output volume.
• TONE adjusts the high-frequency response to fine-tune the brightness of your tone.
• BODY shapes the low frequencies after distortion, adding control over the overall thickness and fullness of the sound.
• GIRTH enhances the saturation of low frequencies, working interactively with the Gain control.
• GAIN adjusts the overall saturation, setting the amount of distortion across the full frequency range. It works interactively with Girth, which specifically controls low-frequency saturation, allowing you to fine-tune both the depth and intensity of the overdrive.
• TRUE BYPASS WITH INITIAL STATE SWITCH lets you set the pedal’s startup behavior using the two side switches, determining whether it powers up in bypass or engaged mode and with boost on or off.

SPECIFICATIONS

• Input impedance: 1 MΩ
• Output impedance: 5 kΩ
• Power supply (not included):
• Voltage: +9 VDC
• Polarity: Center negative
• Current draw: 500 mA
• Length: 136 mm
• Width: 88 mm
• Height: 58 mm
• Weight: 500 g
