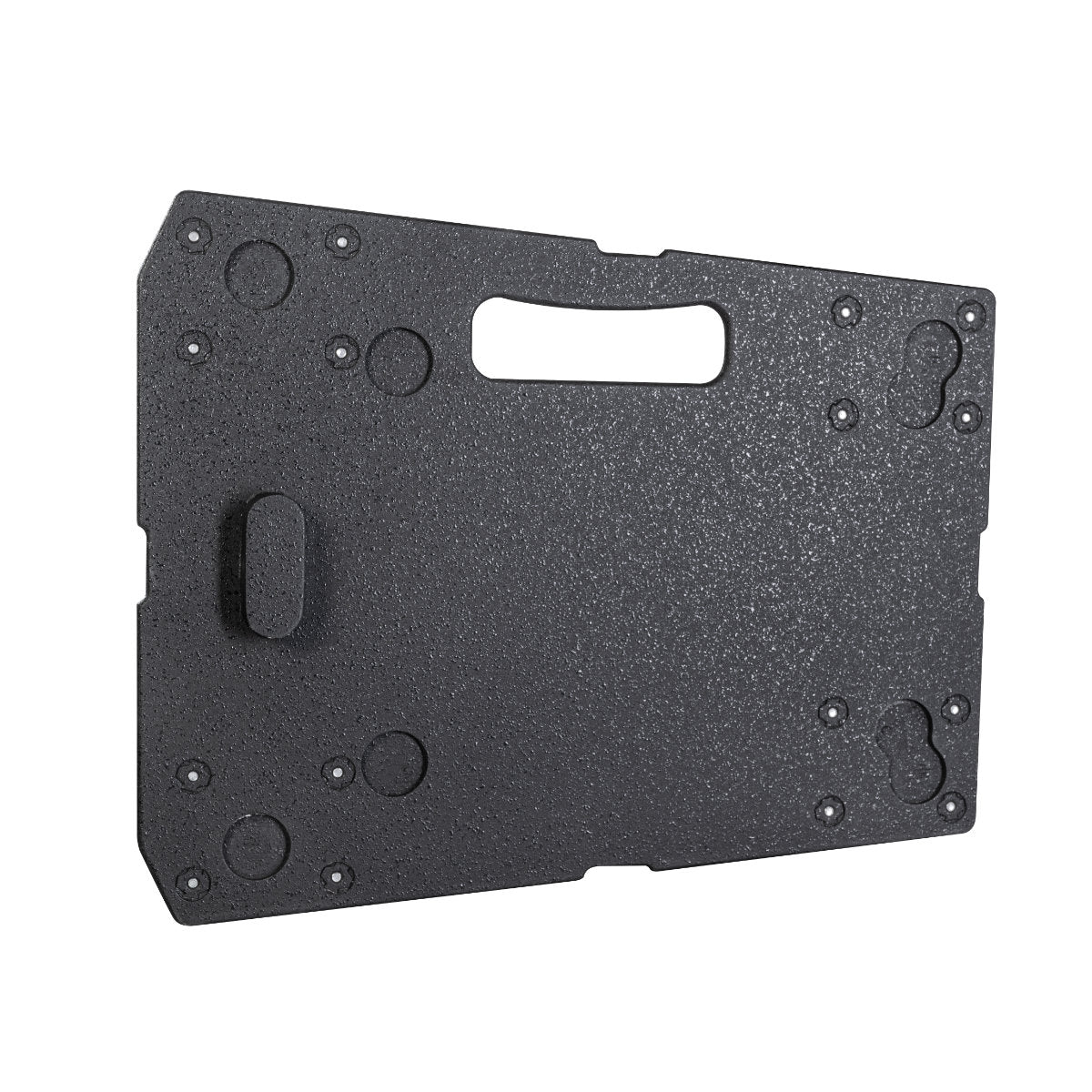

HK Audio POLAR MK2 Wheel Board

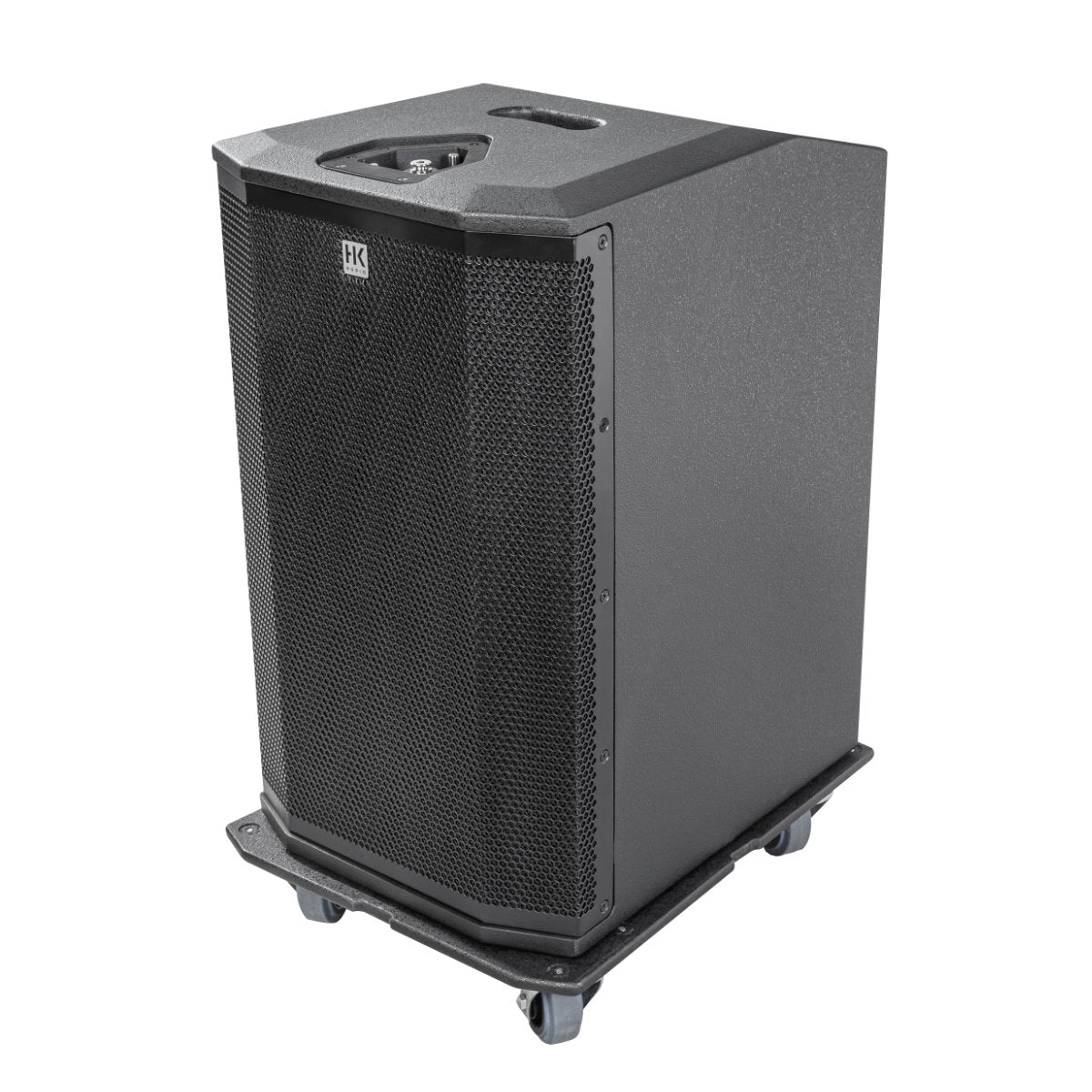

The POLAR MK2 Wheel Board helps you transport your POLAR MK2 system and POLAR 8. Equipment for using a tensioning belt is also available to avoid having to reposition it in the event of obstacles such as stairs or steps.

• Concept: Active 2-way loudspeaker
• Analog input: 2 x XLR/jack combo symm. (Mic/Line), 1 x 3.5 mm (1/8") stereo mini jack
• Power amplifier output peak: 800 W
• Bluetooth: Yes (5.0), TWS
• DSP functions: Master Volume, Level Metering, 3-Band-EQ, Low-Cut-Filter, Front LED, Screensaver, BT Auto Pairing, Delay, Output Pre/Post Master
• Remote app: HK Audio SONAR REMOTE (iOS, Android)

SPECIFICATIONS

General

• Concept: Active 2-way loudspeaker
• Cabinet principle: Bass reflex
• Max. SPL peak: 123 dB
• Max. SPL calculated: 126 dB
• Frequency range -6 dB: 64 Hz - 18 kHz
• Frequency range -10 dB: 59 Hz - 20 kHz
• Dispersion angle -6 dB (horizontal x vertical): 90° x 60°
• Index 3): 1 x unit @ 1 m, 10 % THD, half space

Components

• Mid/high frequency: 1 x 10" cone speaker
• High frequency: 1 x 1" compression driver
• Horn: Constant directivity horn

Connections

• Power supply: 1 x IEC connector
• Analog input: 2 x XLR/jack combo symm. (Mic/Line), 1 x 3.5 mm (1/8") stereo mini jack
• Mix output: 1 x Mix Out XLR symm.

Electronic Data

• Power amplifier: Class AB + D
• Power amplifier output peak: 800 W
• Power consumption: 0.4 A / 220-240 V AC 0.8 A / 100-120 V AC
• Speaker protection: Thermo-Protection, Overload-Protection, Subsonic Filter, Peak and RMS Limiter
• Display: 1.83" color display
• DSP functions: Master Volume, Level Metering, 3-Band-EQ, Low-Cut-Filter, Front LED, Screensaver, BT Auto Pairing, Delay, Output Pre/Post Master
• Remote app: HK Audio SONAR REMOTE (iOS, Android)
• Filter presets: Live/DJ/Monitor
• Bluetooth: Yes (5.0), TWS

Mechanical Data

• Cabinet features/rigging: pole mount 35 mm, tiltable (0°/-7.5°), 3 x M10, monitor angle 35°
• Carrying handles1 x Single: Grip
• Cabinet material: plastic
• Color: Jet black (RAL 9005)
• Front grille: Steel front grille with anticorrosive coating and backed acoustic foam
• Dimensions (W x H x D), metric: 31 x 53.5 x 30 cm
• Dimensions (W x H x D), imperial: 12-7/32 x 21-1/16 x 11-13/16 inch
• Weight, metric: 11.5 kg
• Weight, imperial: 25.4 lbs
