Since the release of the JUPITER-4 in 1978, the name JUPITER has marked the pinnacle of Roland synthesizer development. JUPITER-Xm carries on this storied tradition, combining classic Roland design and premium build quality with the revolutionary ZEN-Core Synthesis System.
Bringing you the power of the flagship JUPITER-X in a compact size, this mini marvel faithfully recreates sought-after instruments from our genre-defining history and delivers the tools you need to craft the sounds of tomorrow. And with multiple layers, loads of polyphony, and deep hands-on control, you can easily build huge, spacious sounds that have as much sparkle and movement as they have warmth and punch.
New update April 2022 Ver. 3.0
Self-contained, ultra-portable, idea machine.
JUPITER-Xm may redefine what you think a synthesizer can be. It has a universe of sounds, expanding all the time. It can jam with you, inspire you, and capture your ideas. It can go just about anywhere, and it doesn’t need any cables or wires to function—not even for power. The JUPITER-Xm is an entire electronic production and performance environment that you can put under one arm. Where you take it, is up to you.
Classic analog to vintage digital. And beyond.
JUPITER-Xm is equipped with Roland's latest sound engine, capable of morphing into legendary synths from our long history of genre-defining sounds. It’s so flexible that it can reproduce our highly sought-after analog classics like the JUPITER-8, JUNO-106, and SH-101, as well as digital machines like the vintage XV-5080 and modern RD pianos. You also get the many Roland drum machines that are the foundation of electronic and dance music like the TR-808, TR-909, CR-78, and more. It’s like a studio full of vintage gear, with modern capabilities and a deep synth engine so you can explore unmapped sonic territory.
Intelligent. Inspiring.
Need something wonderful, fast? JUPITER-Xm’s I-Arpeggio is a next generation arpeggiator that uses artificial intelligence to not just accompany you, but to inspire you. I-Arpeggio takes your input—notes, rhythms, phrases—and creates complementary drum parts, basslines, chords, and arpeggiated lines. It works on each of JUPITER-Xm’s five parts simultaneously, and generated patterns can be customized and even exported to your DAW. These aren’t canned backing tracks—they’re intelligently generated beats and phrases that energize live performance and pulverize writer’s block.
Find the sweet spots.

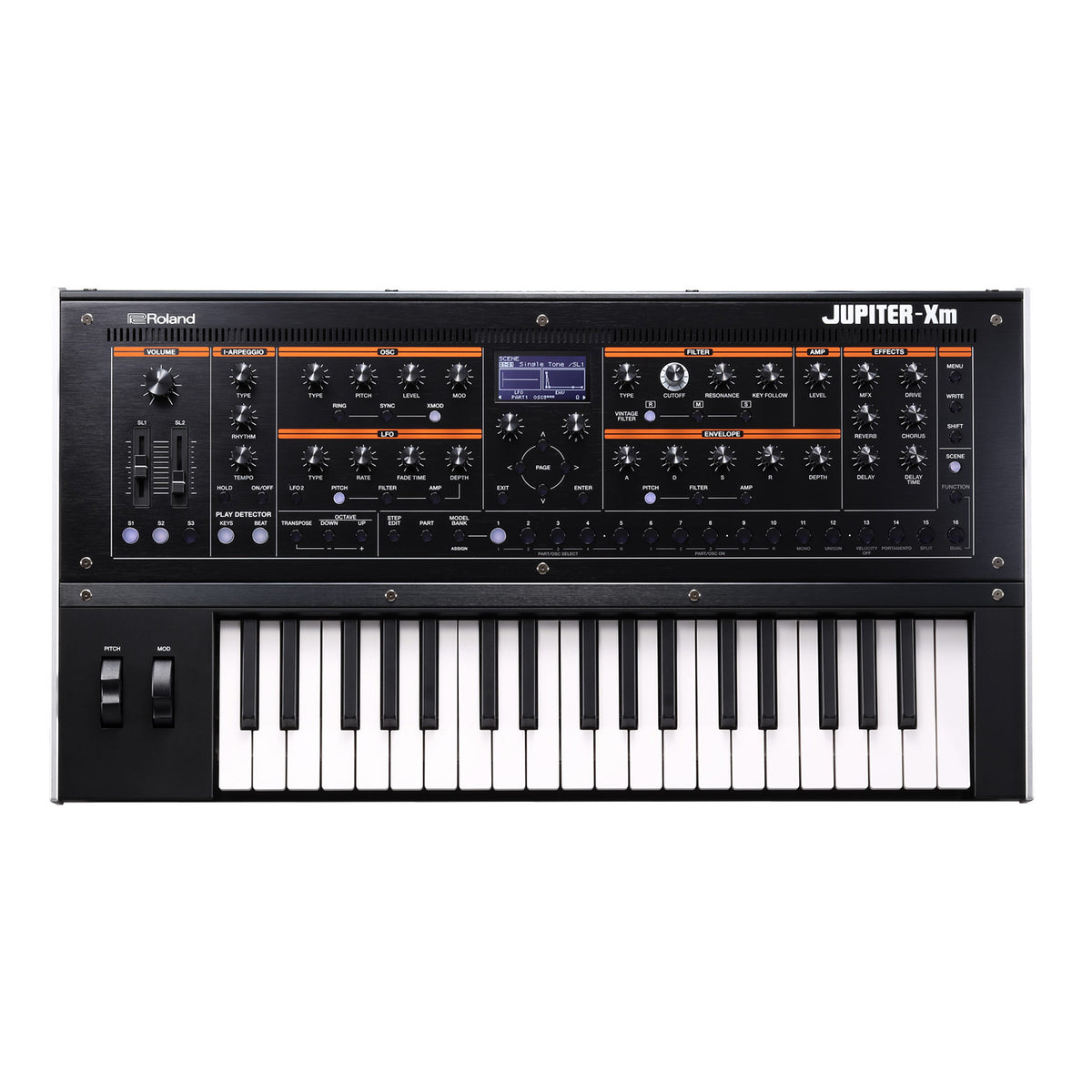

In addition to its informative display, JUPITER-Xm has an array of large, comfortable knobs, sliders, and buttons. They feel sturdy and precise for incredibly smooth sweeps and subtle changes. And with the dedicated effects section and quick switching between synth layers, you can immediately take control of any aspect of a sound. This kind of natural, hands-on control gives you the feeling of reaching in and touching the sound, shaping it to find just the right settings for the moment.
The power of polyphony.
JUPITER-Xm can layer up to five parts, four for synths and one for drums. Its engine can power multiple authentic Roland classics like the JX-8P or JUPITER-8 with enough polyphony to create thick layers and complex backing parts. Create the perfect bass and lead split with an SH-101 and JUNO-106, layer a rich RD piano with lush JX-8P strings, or make a monster stack of JUPITER-8s.
Built to last. Made to play.
Whether it’s a personal studio, professional studio, or a touring rig, JUPITER-Xm is right at home. The tough metal and premium components mean it stands up to the rigors of live performance and always feels solid and precise. The high-quality, balanced connections, full-sized MIDI jacks, and multiple pedal inputs make JUPITER-Xm ready for any situation.
The freedom of wireless.
With JUPITER-Xm, you have the freedom to create, perform, and produce without any cables or clutter. It operates for hours on batteries, has powerful room-filling speakers which can also play audio over Bluetooth, and even controls soft synths on computers and iPad with Bluetooth MIDI. You can jam to backing tracks, produce new tracks, mix internal synths with soft synths—and do it all without ever plugging in a single cable.
So portable. So playable.
Too often you must sacrifice playability and expression for something easily portable. JUPITER-Xm strikes a perfect balance with an all-new 37-key slim keyboard that redefines what a compact keyboard can be. Small doesn’t have to mean cheap, and in the case of JUPITER-Xm, you get solid, responsive keys and three full octaves in a space generally reserved for a lot less.
Hardware. Software. Anywhere.
Nothing beats a dedicated, purpose-built instrument for hands-on sound design or fueling inspired performances. Software, however, offers a spacious interface for detailed editing, integration with your DAW, and the ability to create anywhere. With ZENOLOGY Pro and available Model Expansions, you can design sounds in software to use in your standalone JUPITER-X hardware, or use your go-to hardware sounds in your DAW projects. This seamless and flexible workflow—made possible by the versatile ZEN-Core Synthesis System—ensures your sounds are ready whenever and wherever you need them.
Ever-expanding.
JUPITER-Xm is part of an expandable platform so it can be updated with fresh new content as it becomes available. It can also share sounds and other contents with the full-sized JUPITER-X.
SPECIFICATIONS
Keyboard
37 Keys (compact type with velocity)
Sound Generator
ZEN-Core
Various MODEL sound generators
Parts
5 parts (Play part: 4, Rhythm part: 1)
Tones
Preset tone: 4,000 or greater
User tone: 256
Drum Kit: 90 or greater
Scene
256
Effects
Multi-Effects: 4 systems, 90 types
Part EQ: 5 systems
Overdrive
Reverb: 7 types
Chorus: 4 types
Delay: 5 types
Mic NS / Comp
Master EQ / Comp
Arpeggiator
I-ARPEGGIO (Multi parts arpeggiator with playing detection)
Arpeggio Parts
5 parts
Controllers
Pitch Bend Wheel
Modulation Wheel
Assignable Slider x 2
Assignable Switch x 3
Bluetooth
Ver 4.2
Profile Support: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy)
Codec: SBC (Support to the content protection of the SCMS-T method)
Display
Graphic LCD 128 x 64 dots
Speaker Amplifier Power Output
4 W x 2
Speakers
Full range (3.5 x 8 cm) x 2
Tweeter 2 cm x 2

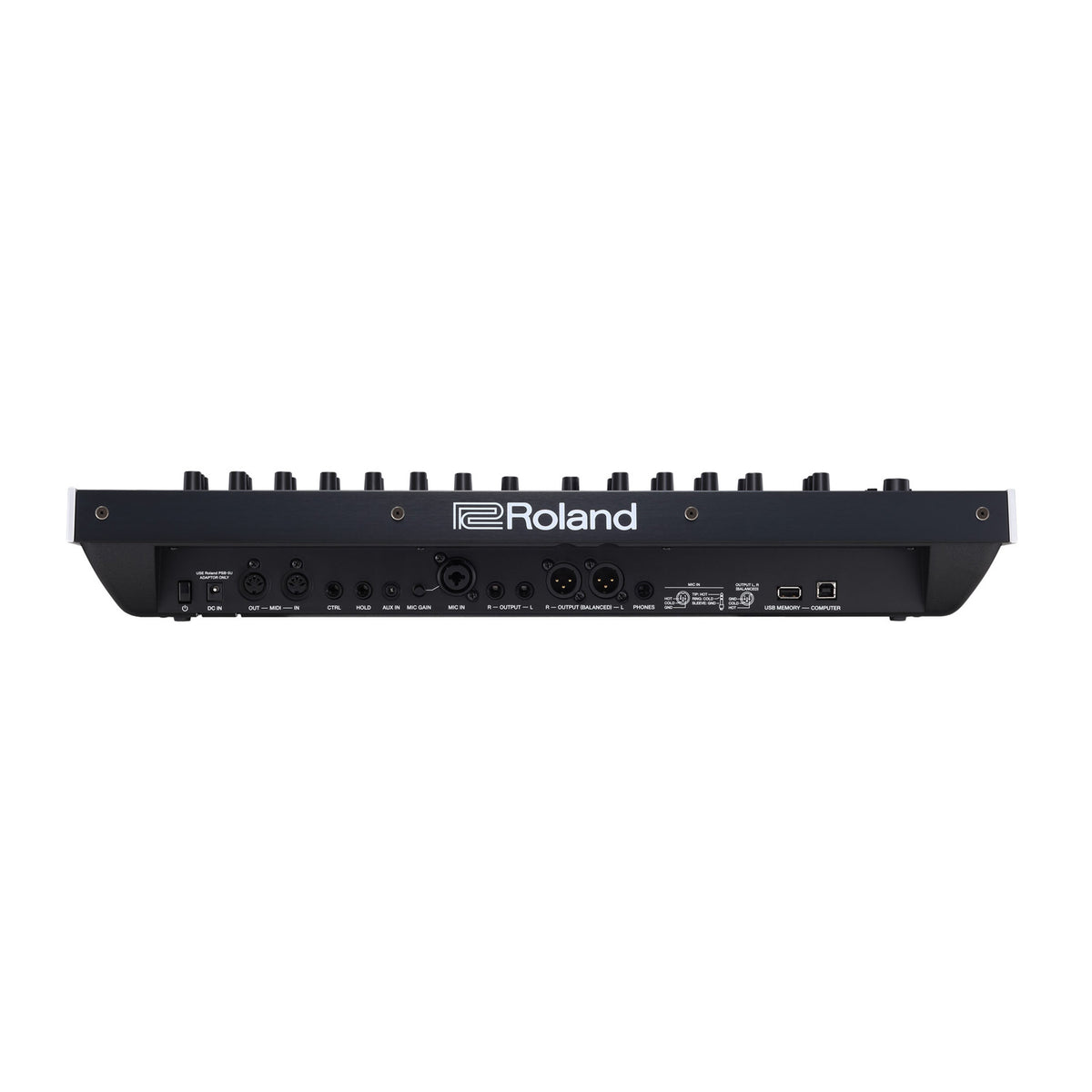

Connectors
HEADPHONES jacks: Stereo miniature phone type (front), Stereo 1/4-inch phone type (rear)
MAIN OUT jacks (L/MONO, R): 1/4-inch phone type
MAIN OUT jacks (L, R): XLR type
MIC INPUT jack: 1/4 inch phone type/XLR type
AUX INPUT jack: Stereo miniature phone type
HOLD PEDAL jack
CONTROL PEDAL jack
MIDI connectors (IN, OUT)
USB COMPUTER port (AUDIO/MIDI)
USB MEMORY port
DC IN jack
External Memory
USB Flash drive (sold separately)
Power Supply
DC 12 V: AC adaptor or rechargeable Ni-MH battery (AA, HR6) (sold separately) x 8
Current Draw
1,500 mA
Accessories
Owner's manual
Leaflet "USING THE UNIT SAFELY"
AC adaptor (PSB-5U)
Power cord
Options (sold separately)
Pedal Switch: DP series
Expression Pedal: EV-5
USB Flash drive (*)
* Use a commercially available USB flash drive. However, we cannot guarantee that all commercially available USB flash drives will work.
SIZE AND WEIGHT
Width: 576 mm, 22-11/16 inches
Depth: 308 mm, 12-1/8 inches
Height: 93 mm, 3-11/16 inches
Weight (excluding AC adaptor, Batteries): 4.4 kg, 9 lbs 12 oz
