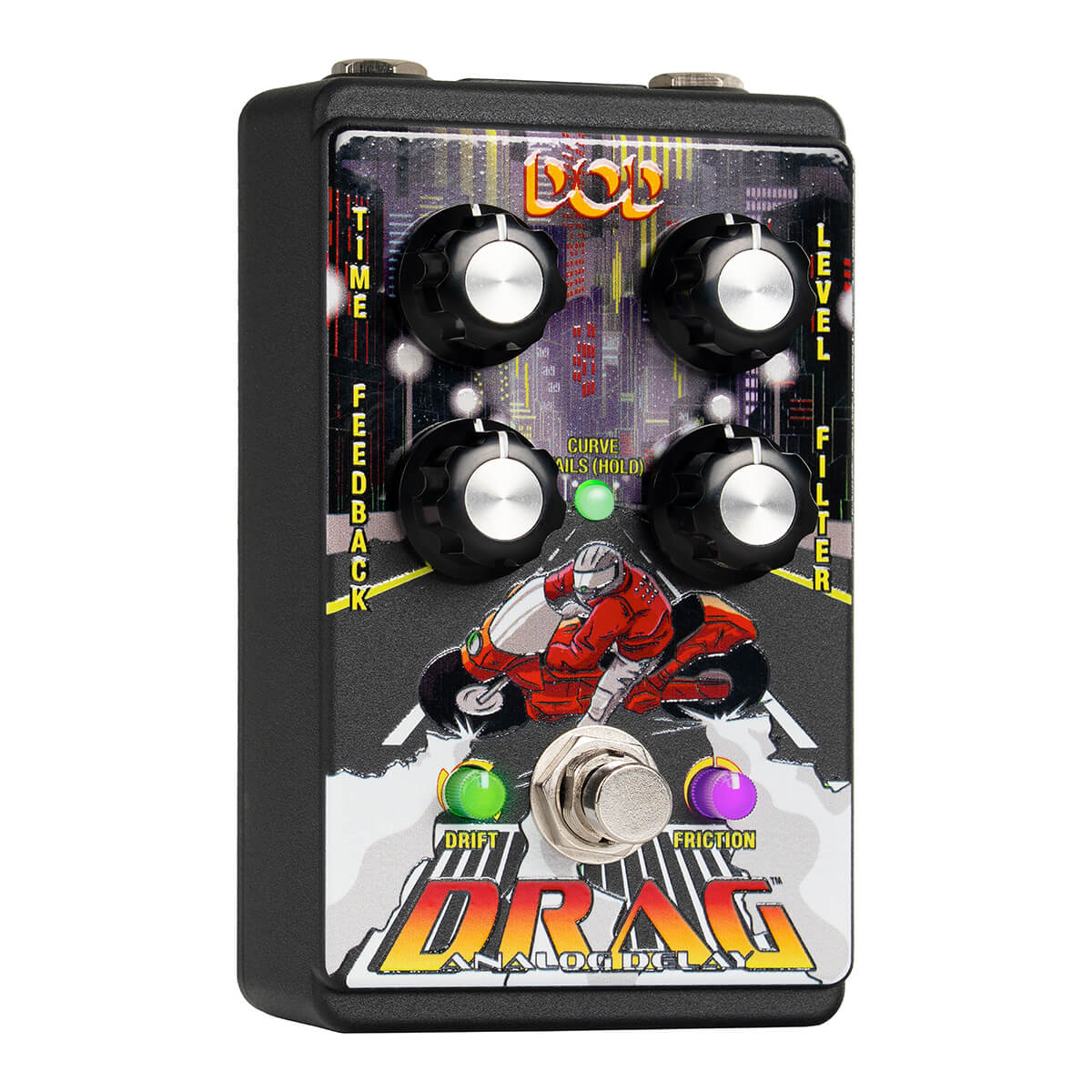

DigiTech DOD DRAG Time Warping Analog Delay Pedal

The DOD DRAG™ is an analog delay pedal that not only pushes sonic boundaries, but goes far beyond the capabilities of any standard delay pedal on the market.

From a quick rockabilly slapback delay to long, drifting, LFO-enriched psychedelic oscillation, DRAG™ exceeds all expectations and packs a ton of horsepower into its compact chassis. Not to mention the two new, patent-pending SlideStop™ and Evade™ Friction™ categories, engaged by holding down the footswitch to bring your signal to a screeching halt and reaccellerating as you release it, capturing the exhileration of fast-paced street racing. These “never been done before” features redline its all-analog engine beyond reasonable limits. The third Friction™ category is borrowed from DRAG’s big brother with its “Rubbernecking” mode providing octave down and up pitch bending capablities. The FRICTION knob gives you full control over the speed of your manuevers. The DRIFT knob, in a sense, adjusts the drift dynamics of your street bike – that is, the speed and depth of the drift.

You, as the rider, also have complete freedom over your drifting (modulation) style using the various Curve™ wave shape selections. Standard equipment includes the new patent-pending reversible StagePlate™ enabling optimized grip for various track conditions.

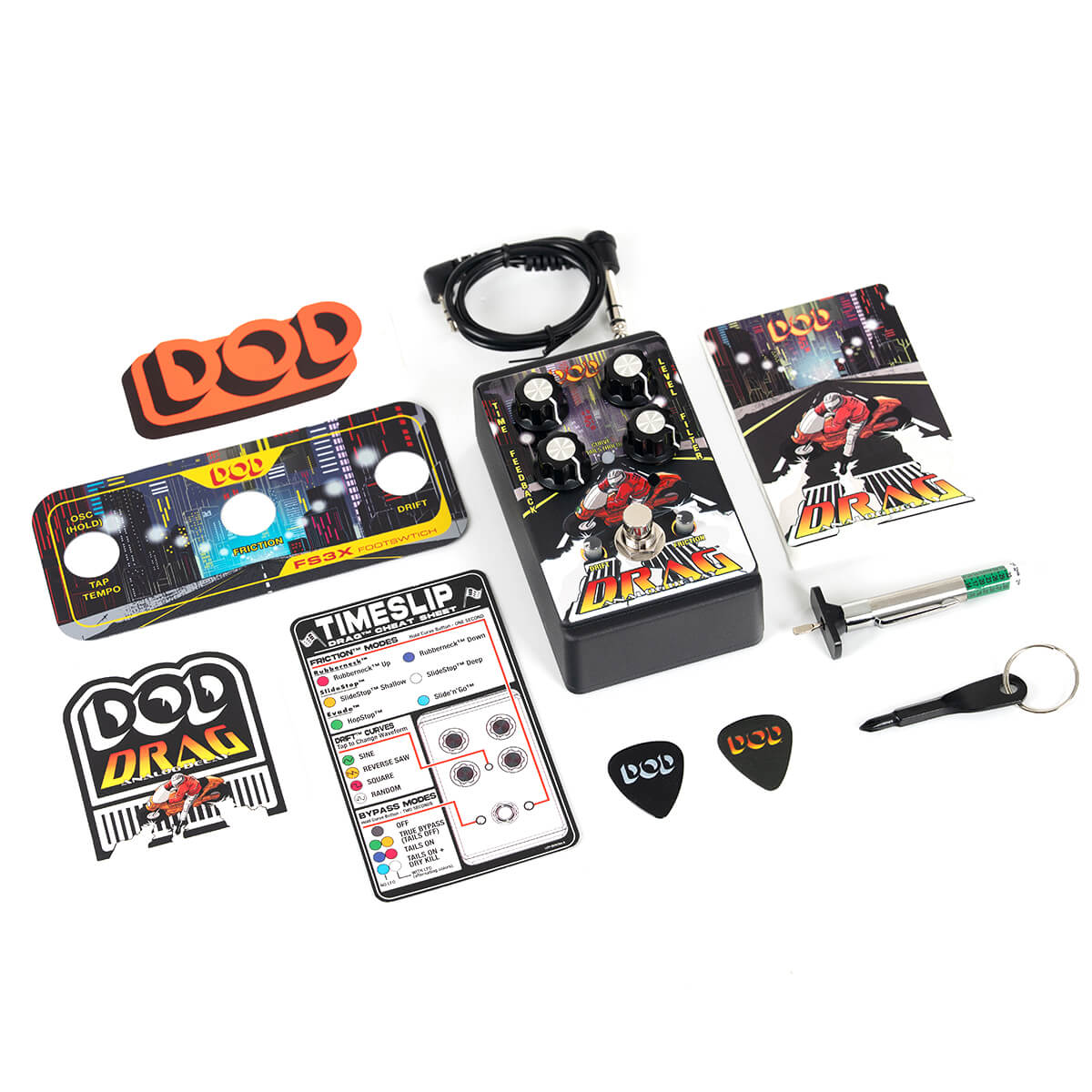

DRAG™ also includes a Mechanic’s Toolkit for tire maintenance, fast pit stop changeovers, and emergency “jumps”. Also, with the optional aftermarket FS3X footswitch “performance package”, you can unleash the full potential of DRAG™.

Warm Analog Delay...

DRAG™ is a warm-sounding BBD analog delay pedal built for players who want rich, organic repeats with plenty of room to roam. With up to 750ms of delay time and 1.5 when Rubbernecking DRAG™ delivers everything from tight rhythmic echoes to deep, spacious trails.

...With Time Warping Effects!

Take DRAG™ beyond traditional delay with DigiTech's new patent pending Slidestop™ and Evade™. Create dramatic pitch-shifting, tape-stop-style effects that slam the brakes on your repeats for an instant dose of sonic chaos.

Top-jack Chassis Design

DRAG™ is engineered with a top-jack chassis design that keeps your cables and pedalboard clean and pack in more gear without sacrificing space. Use the convenient 3.5mm input to connect the optional FS3X footswitch and unlock the expanded DRAG™ functionality, putting even more control right at your feet with tap tempo, curve off/on, and friction™ control.

FEATURES

• Fully analog BBD engine
• 750ms delay time

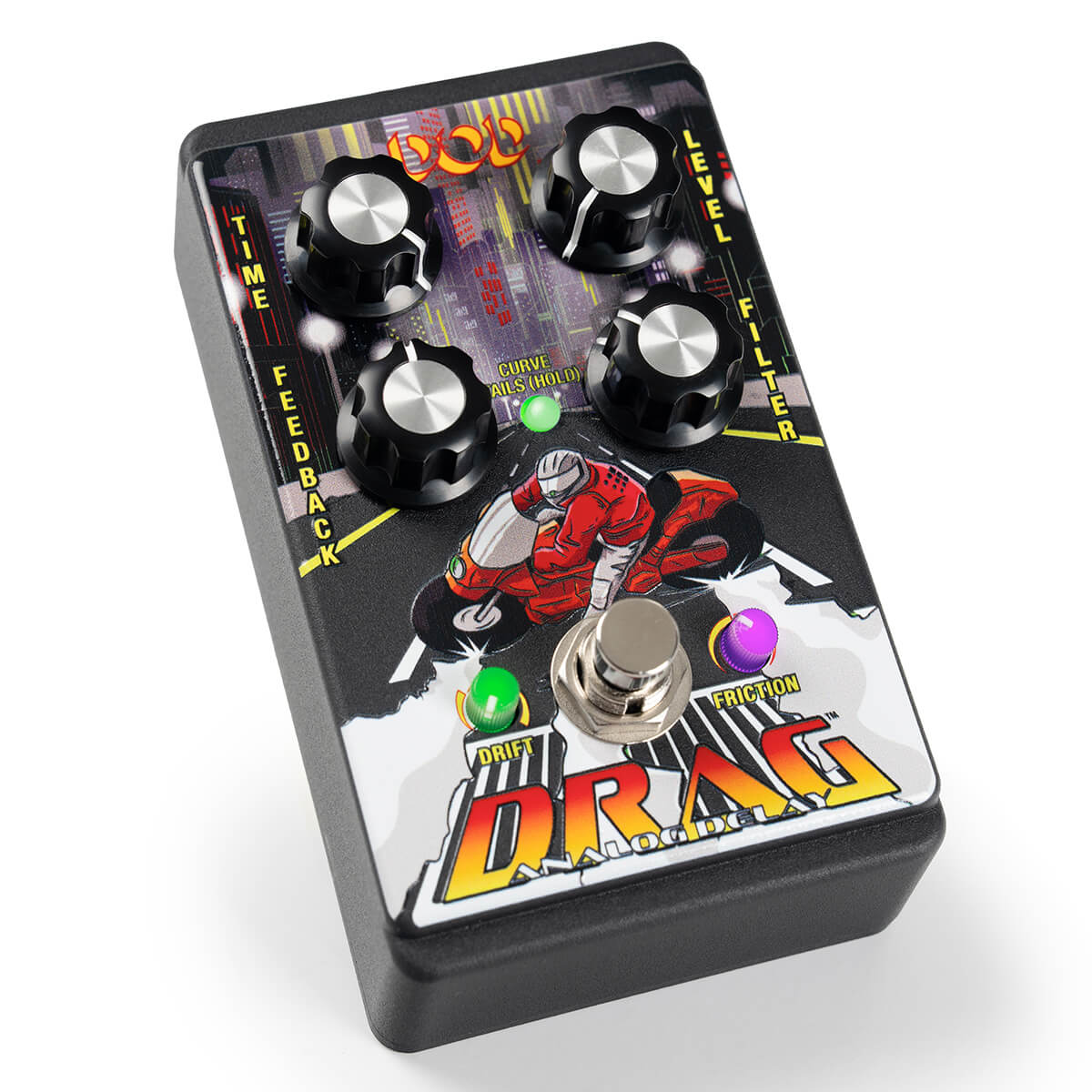

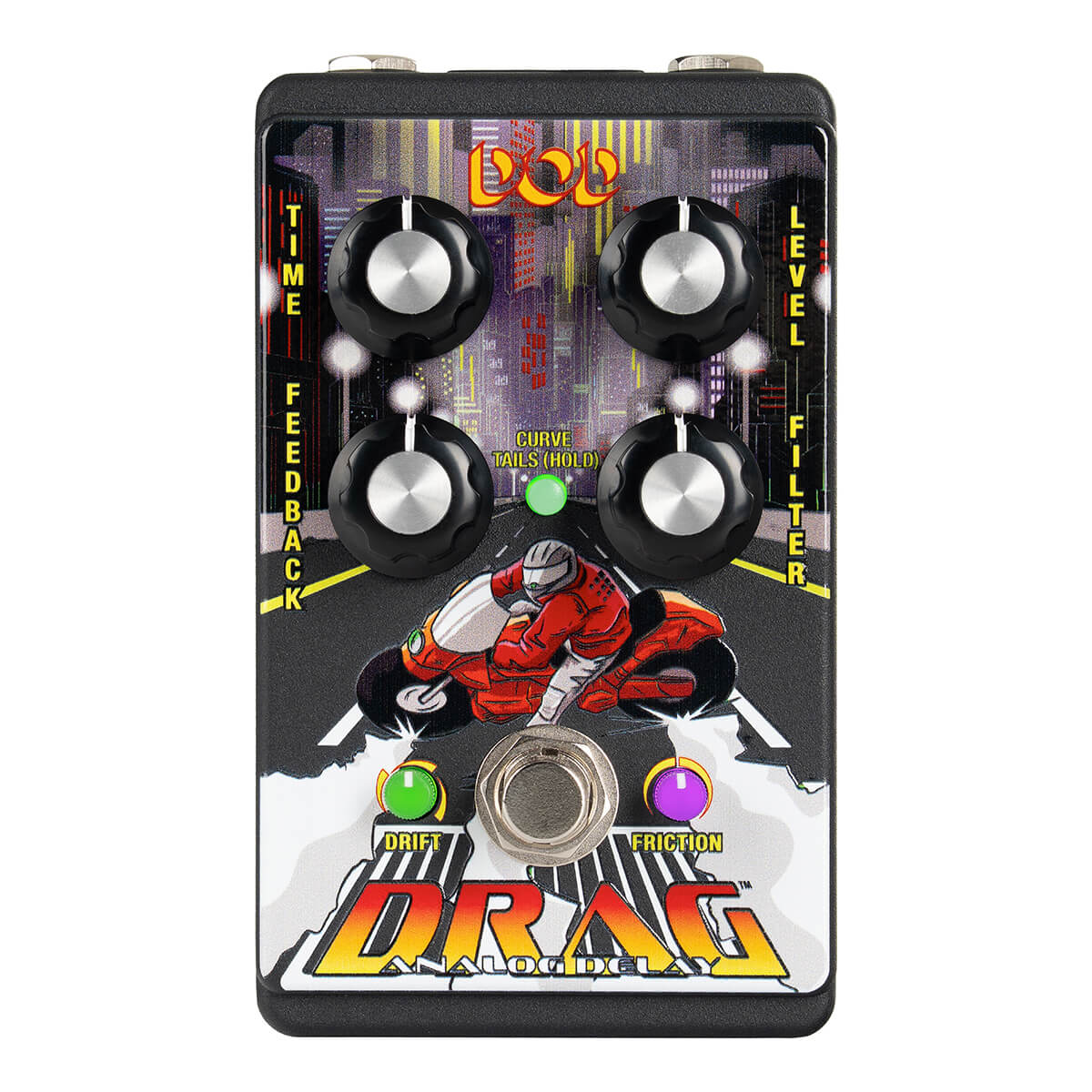

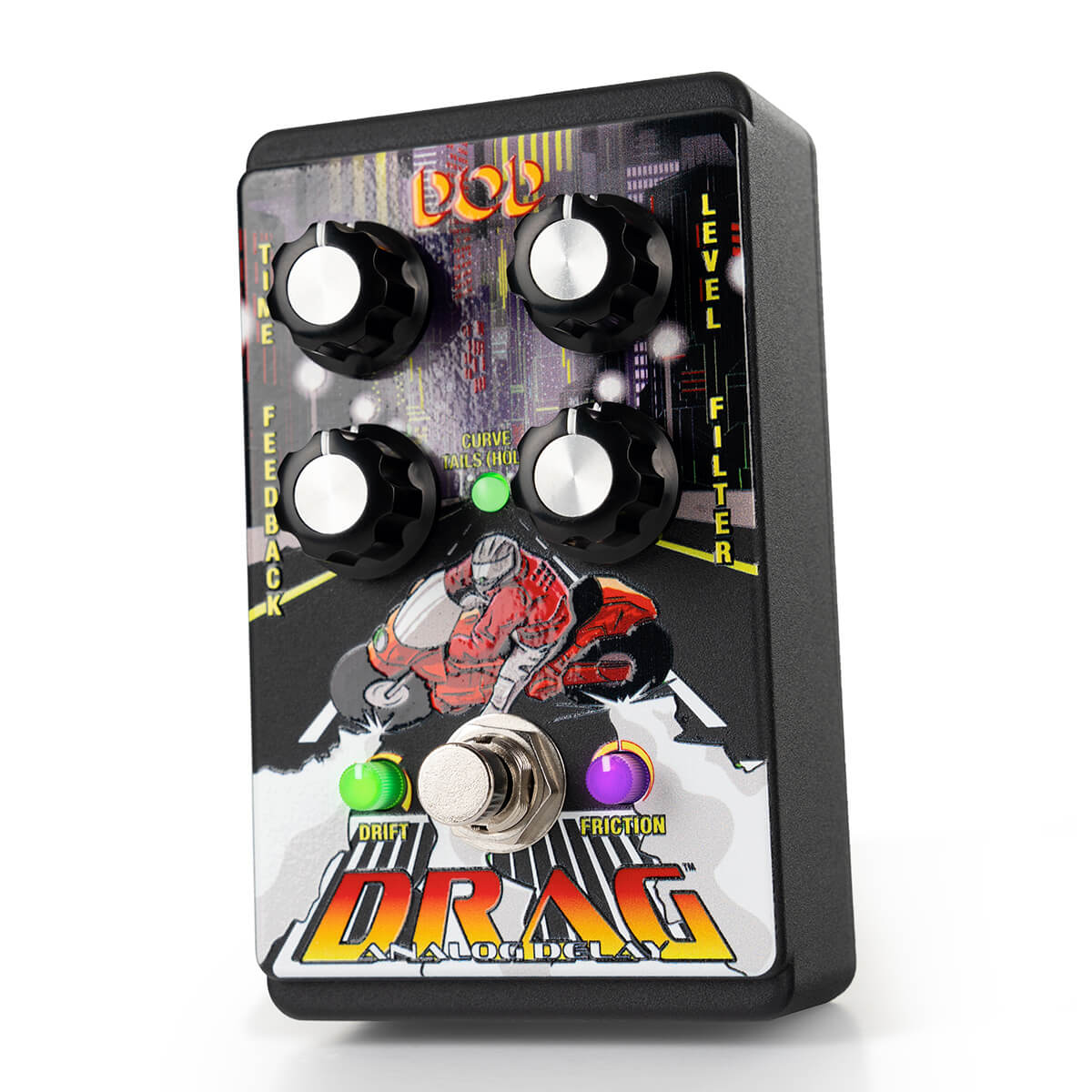

• 6 rotary controls – Time, Feedback, Filter, Level, Drift, Friction
• Unprecedented Patent-Pending clock control of RPM’s for extensive BBD manipulation
• 4 modulation waveforms – sine, reverse saw, square, random
• 3 modulation speed/depth ranges – light, medium, heavy
• Pushes into redline territory with self-oscillation
• 3.5mm jack enables full DRAG™ functionality using an optional FS3X footswitch
• True Bypass & tails on/off modes
• All-new top-jack chassis design
• Patent-Pending reversible StagePlate™ with both skid pad & hook-and-loop sides for clean & convenient pedal board mounting
• Standard +9V DC tip-negative barrel jack
• Mechanic’s Toolkit included!
• 3 Friction™ Categories:
  • All-new SlideStop™
    • Shallow slide
    • Deep slide
  • Rubberneck™
    • Octave Up bend
    • Octave Down bend
  • All-new Evade™
    • HopStop™ slide
    • Slide-n-Go™

HIGHLIGHTS

CURVE / TAILS Switch - DRIFT™ Shape (Short Press)

Cycles through the four modulation waveforms used by the DRIFT™ Control. The CURVE Color indicates the active waveform:

• GREEN - Sine
• YELLOW - Reverse Saw
• PINK - Square
• WHITE - Random

CURVE / TAILS Switch - FRICTION CATEGORIES

Each 1-second press cycles through the SlideStop™, Rubberneck™, and Evade™ Friction™ categories, determining how the FRICTION™ control and footswitch behave.

SlideStop™

• YELLOW - Shallow 1 Octave Down
• WHITE - Deep 2 Octaves Down

Rubberneck™

• PINK - 1 Octave Down
• BLUE - 1 Octave Up

Evade™

• HopStop™ / GREEN - Release after hold to accelarate
• Slide-n-Go™ / TEAL - Auto acceleration after slide

CURVE / TAILS Switch - BYPASS MODES

Cycles through 3 bypass modes which select how the pedal behaves when bypassed. The DRIFT™ Control blinks to the rate of the waveform/depth with color indicating the current bypass mode.

• GREEN (w/ yellow) - True hardwired bypass (tails off)
• BLUE (w/ purple) - Buffered bypass w/ delay tails
• TEAL (w/ white) - Buffered bypass w/ delay tails & dry-kill

DRIFT™ CONTROL

Choose your modulation intensity (light, medium, or heavy) and shift from clean, untouched textures to aggressive, swirling, high-impact motion. Pick your level. Twist the throttle. Own the texture.

FRICTION™ CONTROL

Set the onset and recovery attack of the delay-time warp for SlideStop™, Evade™, and Rubberneck™. Dial it in. Ride the warp.

FOOTSWITCH

Tap to turn DRAG™ on/off. Then hold the footswitch to engage FRICTION™, unlocking expressive, real-time control over DRAG™’s most dramatic features. Use FRICTION™ to interactively control SlideStop™, Rubberneck™, and Evade™—transforming a simple footswitch press into dynamic, performance-ready sonic control. Don’t just trigger the effect. Ride it.

FEEDBACK CONTROL

Controls the feedback level, which determines the number of repeats. Turning the feedback clockwise increases the number of repeats.

TIME KNOB

From tight slap-back to full-blown psychedelic meltdown. Dial in the feedback level and take your sound from classic, punchy repeats to expansive, self-evolving oscillations that push the delay far beyond the expected.Turn it up. Chase the feedback. Exceed expectations.

LEVEL CONTROL KNOB

Dial in the perfect balance between your Dry signal and Delay signal, from subtle ambience to fully saturated echoes. Keep it clean. Push the repeats. You decide how much DRAG™ hits the mix.

FILTER CONTROL

Shape the repeats and control the character. This control dials in the low-pass filter cutoff and decides how bright or how dark your delay repeats become. Turn it down and let the repeats fade into the shadows.

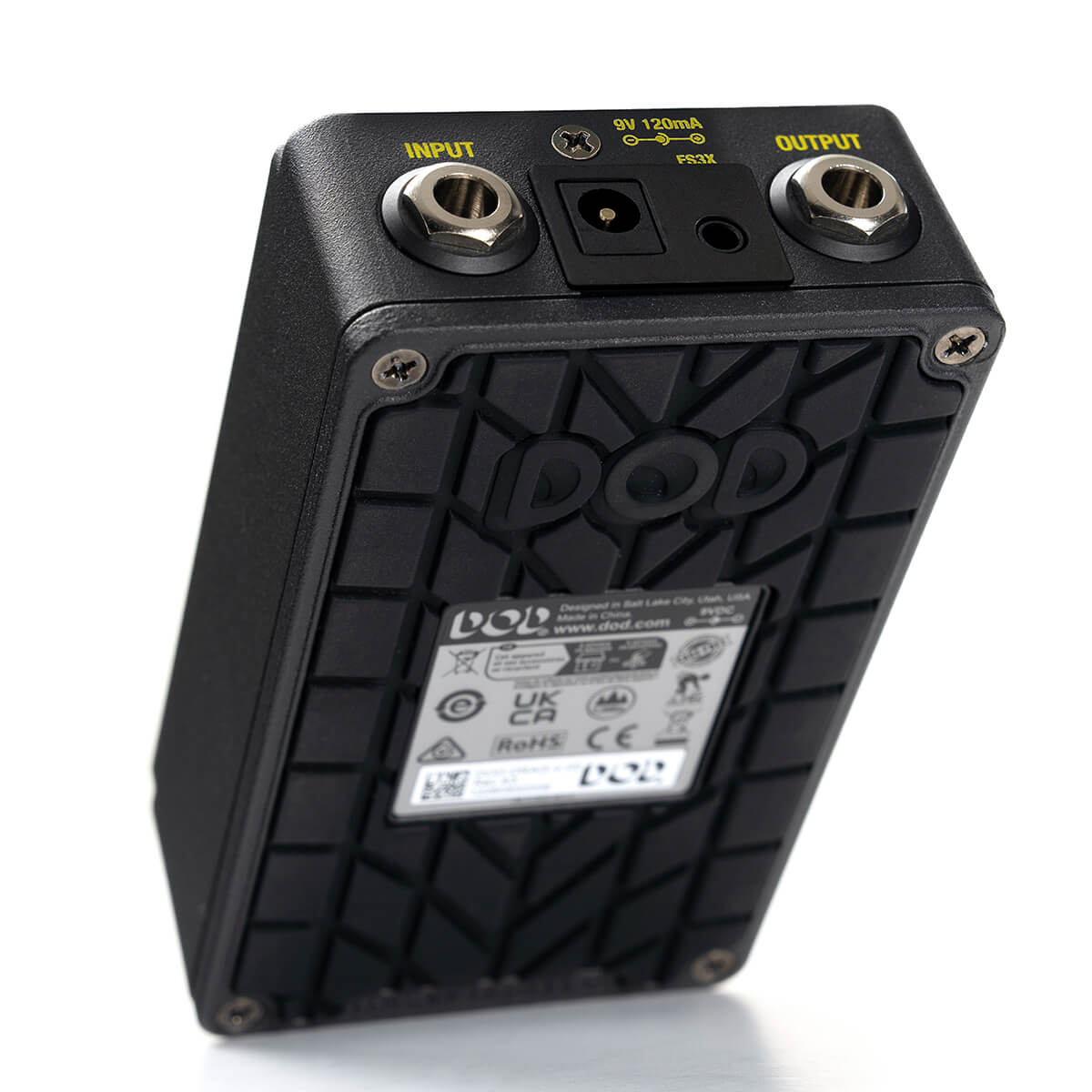

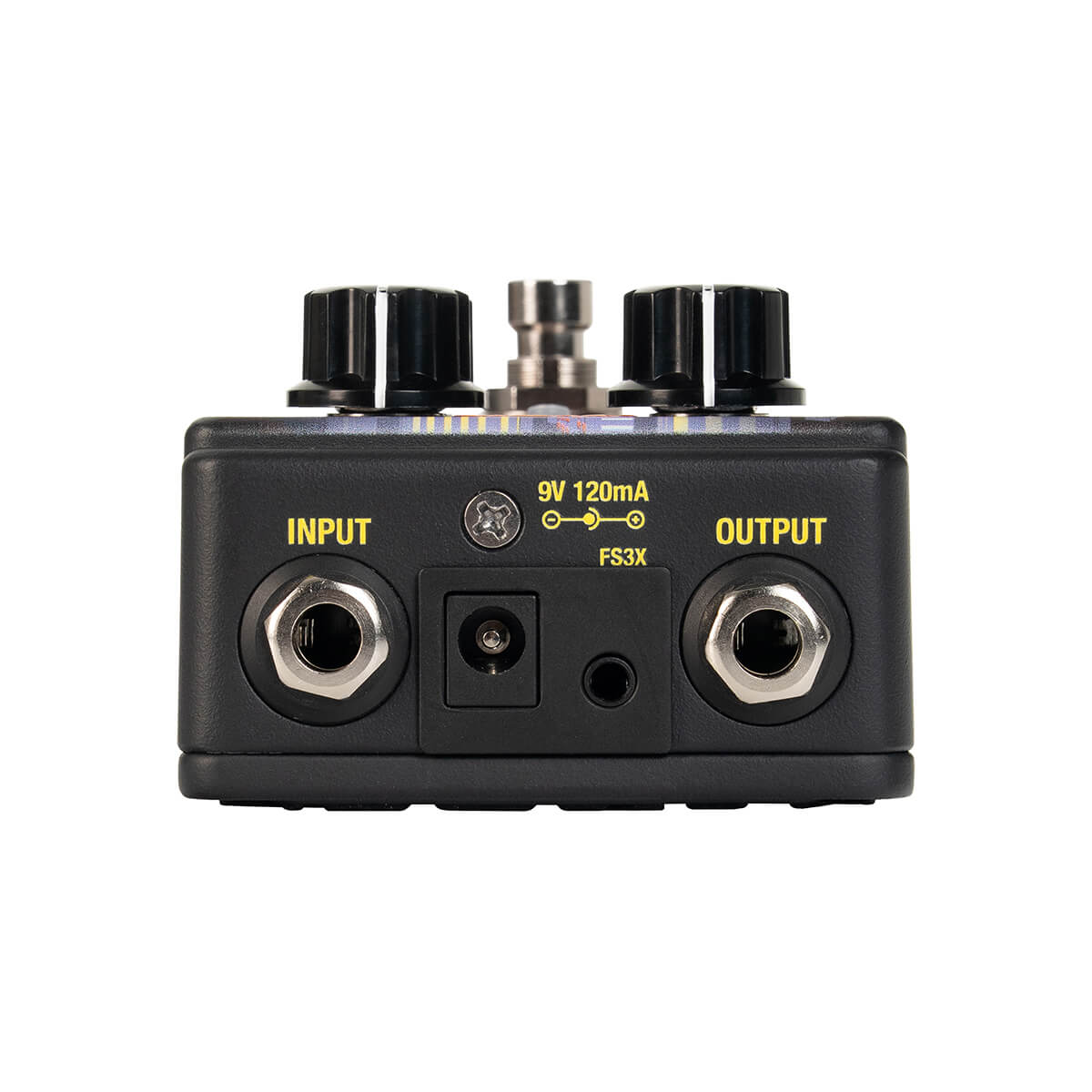

POWER SUPPLY CONNECTOR + 3.5MM INPUT

Get your DRAG™ ready for the road with a standard 9V PS0913 DC power supply and get your rig fired up. Add the optional DigiTech FS3X footswitch to unlock the full functionality of DRAG™ and put expanded control right under your foot. The included magnetic “Pit Sign” snaps over the optional FS3X, complete with matching DRAG™ graphics and easy to understand control names for an integrated, race-ready setup.

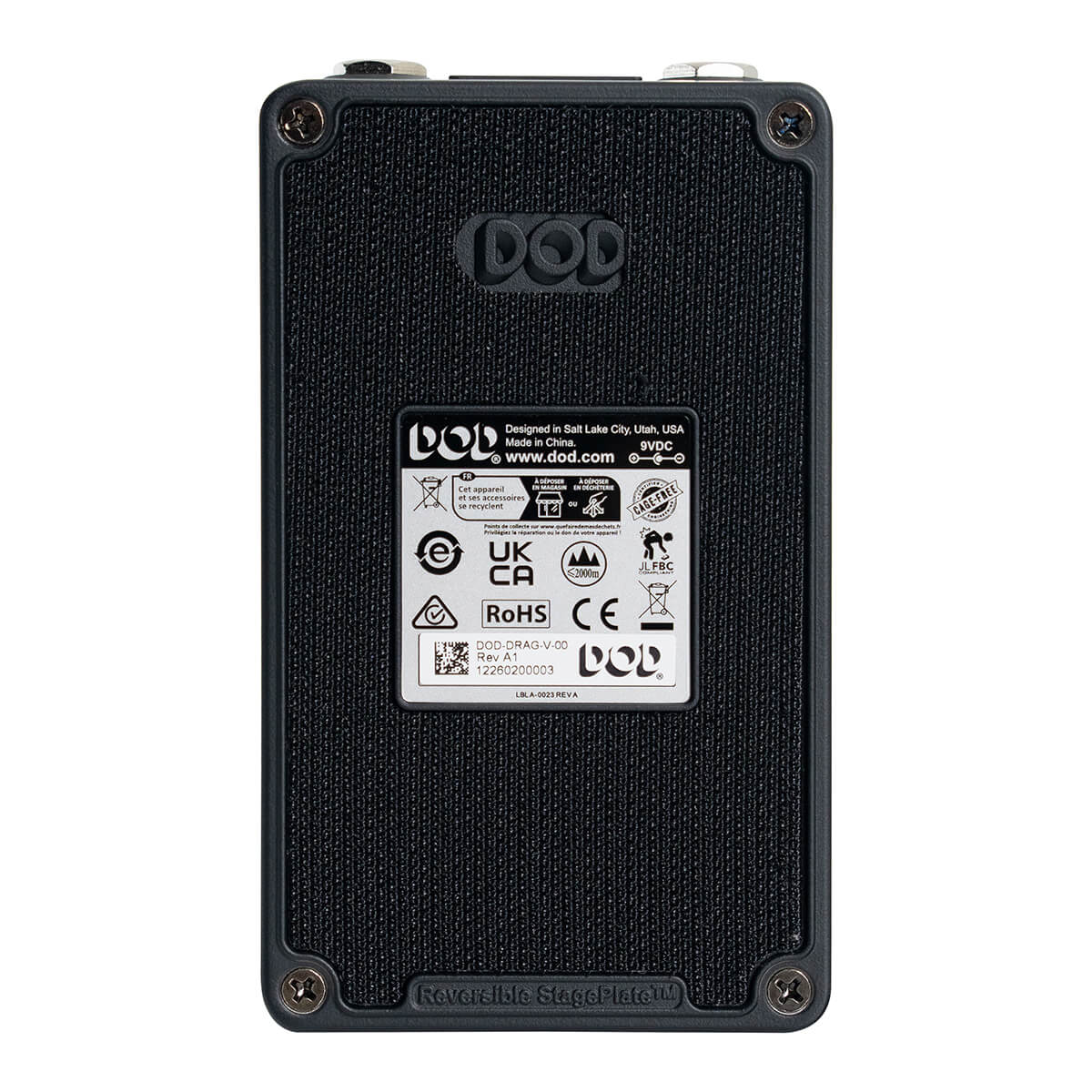

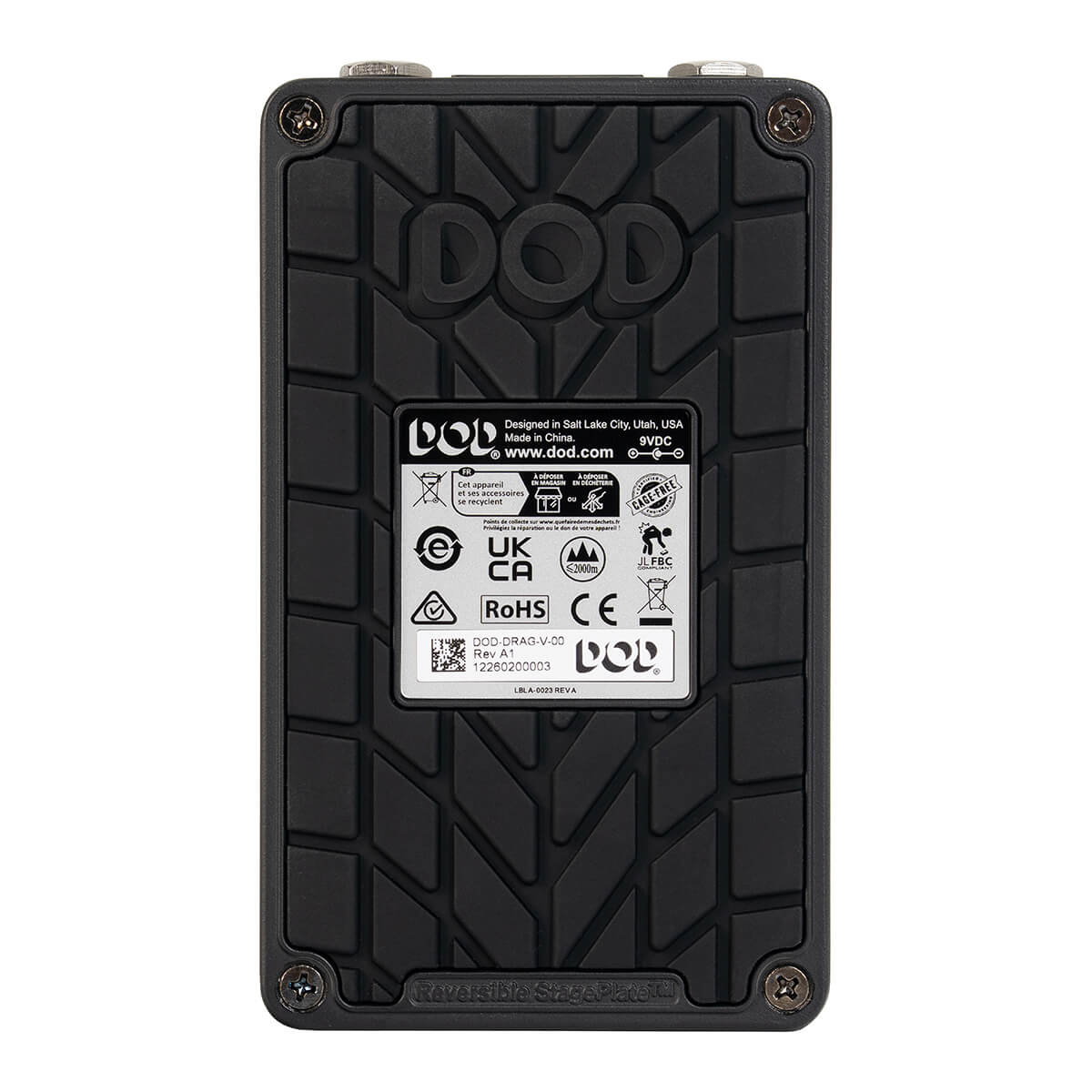

STAGEPLATE™

The patent-pending 2-sided StagePlate™ ships with the rubber skid-pad side exposed for stable grip, and can be flipped to the hook side (Velcro©) for pedalboard mounting by removing and reinstalling the four screws—giving you reliable flexibility in any setup.

SPECIFICATIONS

• Dimensions: 4.8"(121mm) x 2.8"(71mm) x 1.5”(38mm) (H=2.1”(53mm) w/ switch)
• Pedal Weight: 0.67 lbs. (0.30 kg)
• Input: ¼” Instrument Mono Phone Jack
• Input Impedance: >500kΩ
• Output: ¼” Instrument Mono Phone Jack
• Output Impedance:: < 1kΩ
• Chassis: Aluminum
• Power Input: 2.1mm DC Barrel Jack, center (tip) negative
• Power Supply: PS0913DC Power Supply, Other well-regulated 9V center (tip) negative supply
• Current Draw: < 120mA typical
