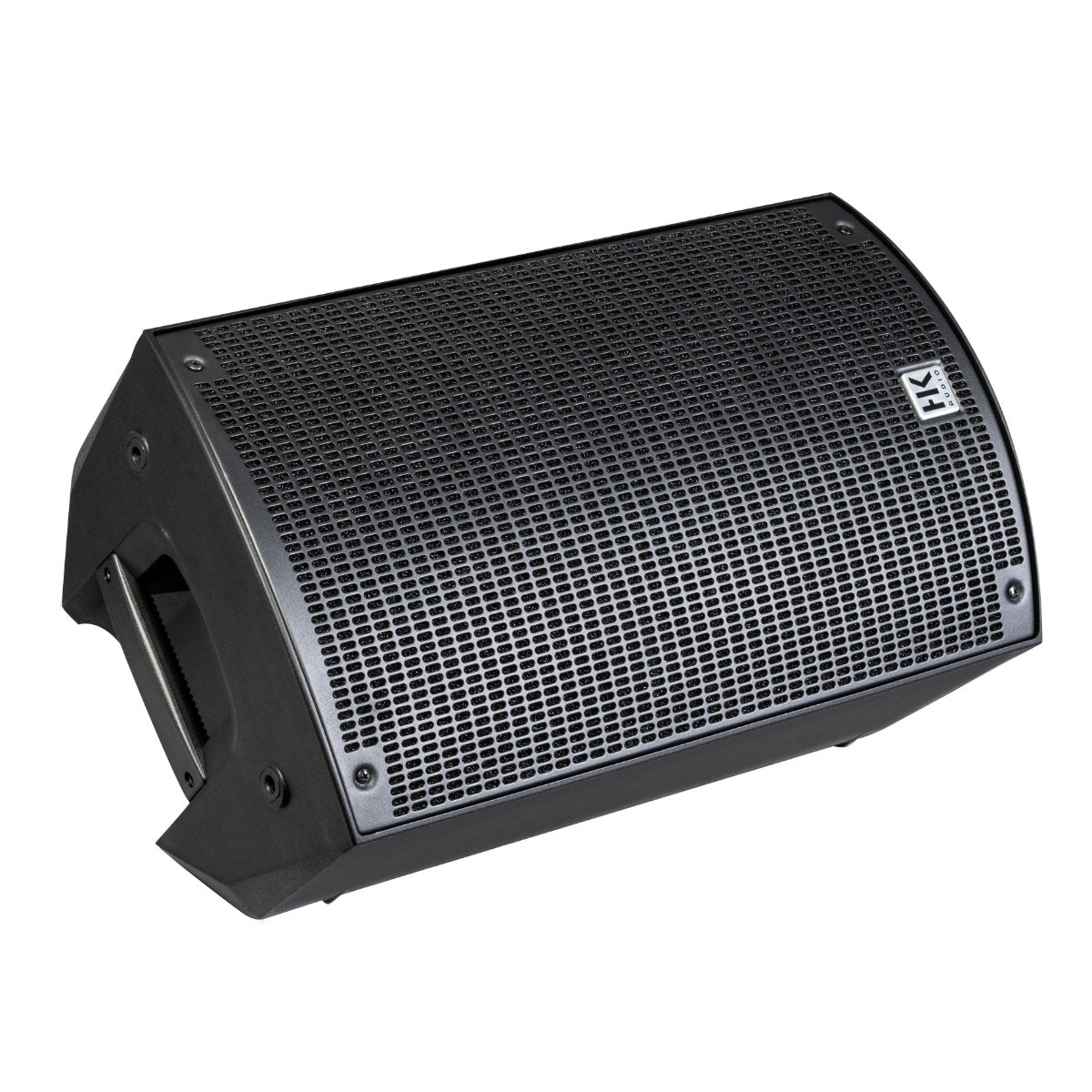

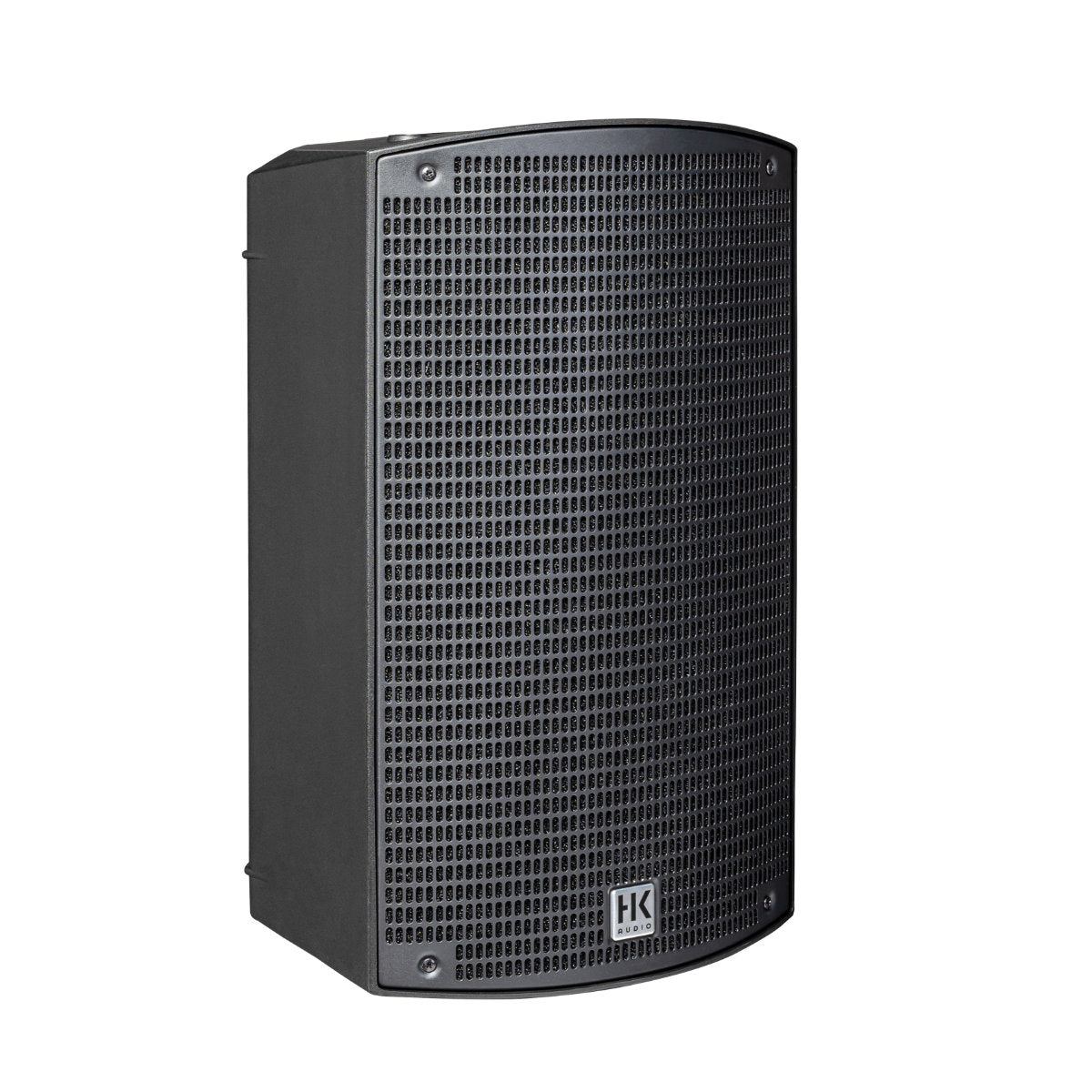

HK Audio SONAR 110 Xi 2-Way 800W 24-bit DSP Powered Speaker w/ Bluetooth - 10in

The SONAR 110 Xi is an extremely compact active speaker that comes into its own as a full-range speaker, as an inconspicuous stage monitor or as a satellite in combination with a subwoofer. Powerful components and meticulous HK Audio acoustic engineering guarantee a rich and powerful sound.

SONAR 110 Xi offers three input channels: two for microphone or line signals plus one AUX channel, which receives analogue signals as well as via Bluetooth 5.0. Music can be streamed in stereo to two SONAR Xi speakers via Bluetooth TWS (True Wireless Stereo). The volume and 3-band EQ for each channel can be adjusted intuitively using the rotary control and colour display. Thanks to the free SONAR REMOTE app (for iOS and Android), all functions can also be controlled remotely for added convenience.

• Concept: Active 2-way loudspeaker
• Analog input: 2 x XLR/jack combo symm. (Mic/Line), 1 x 3.5 mm (1/8") stereo mini jack
• Power amplifier output peak: 800 W
• Bluetooth: Yes (5.0), TWS
• DSP functions: Master Volume, Level Metering, 3-Band-EQ, Low-Cut-Filter, Front LED, Screensaver, BT Auto Pairing, Delay, Output Pre/Post Master
• Remote app: HK Audio SONAR REMOTE (iOS, Android)

SPECIFICATIONS

General

• Concept: Active 2-way loudspeaker
• Cabinet principle: Bass reflex
• Max. SPL peak: 123 dB
• Max. SPL calculated: 126 dB
• Frequency range -6 dB: 64 Hz - 18 kHz
• Frequency range -10 dB: 59 Hz - 20 kHz
• Dispersion angle -6 dB (horizontal x vertical): 90° x 60°
• Index 3): 1 x unit @ 1 m, 10 % THD, half space

Components

• Mid/high frequency: 1 x 10" cone speaker
• High frequency: 1 x 1" compression driver
• Horn: Constant directivity horn

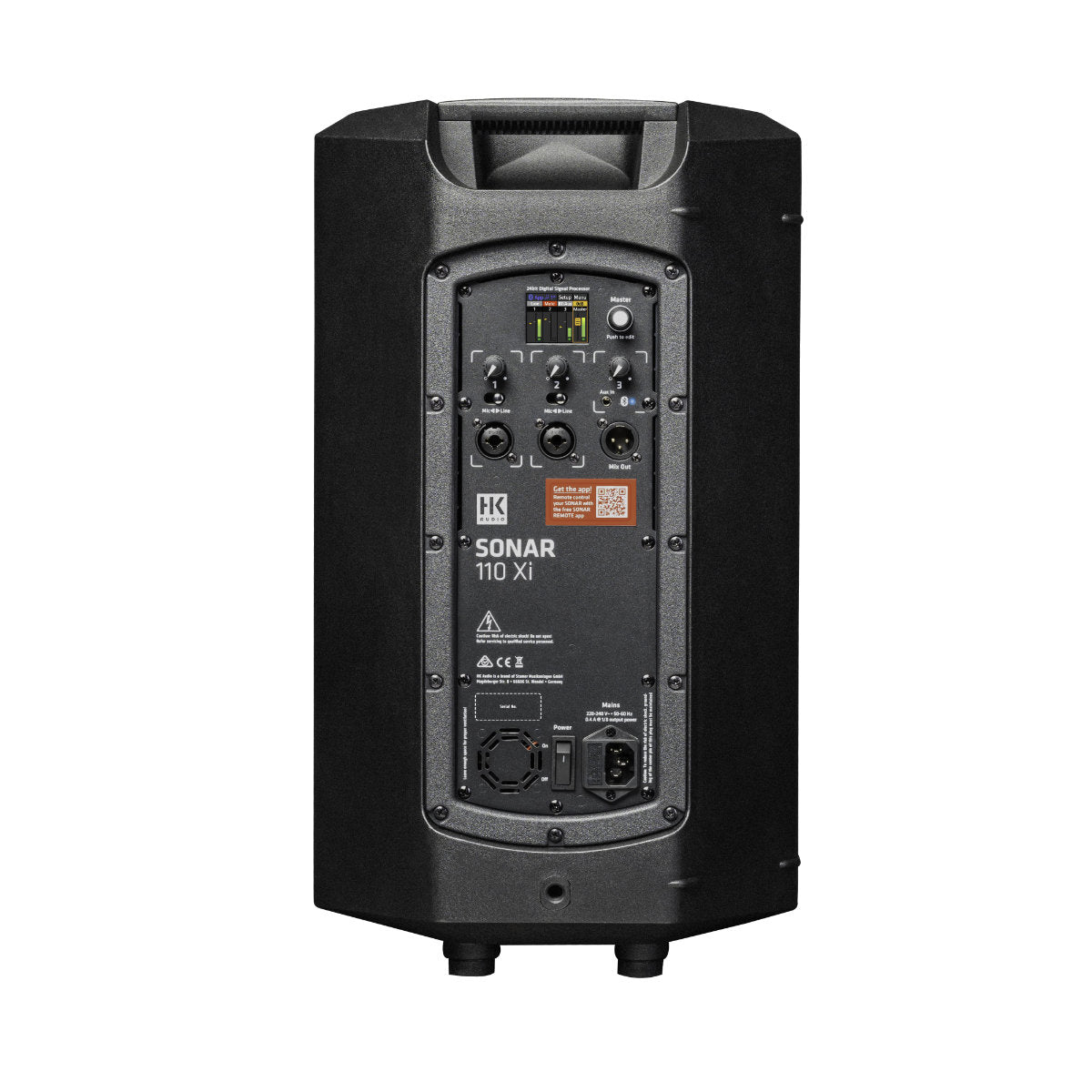

Connections

• Power supply: 1 x IEC connector
• Analog input: 2 x XLR/jack combo symm. (Mic/Line), 1 x 3.5 mm (1/8") stereo mini jack
• Mix output: 1 x Mix Out XLR symm.

Electronic Data

• Power amplifier: Class AB + D
• Power amplifier output peak: 800 W
• Power consumption: 0.4 A / 220-240 V AC 0.8 A / 100-120 V AC
• Speaker protection: Thermo-Protection, Overload-Protection, Subsonic Filter, Peak and RMS Limiter
• Display: 1.83" color display
• DSP functions: Master Volume, Level Metering, 3-Band-EQ, Low-Cut-Filter, Front LED, Screensaver, BT Auto Pairing, Delay, Output Pre/Post Master
• Remote app: HK Audio SONAR REMOTE (iOS, Android)
• Filter presets: Live/DJ/Monitor
• Bluetooth: Yes (5.0), TWS

Mechanical Data

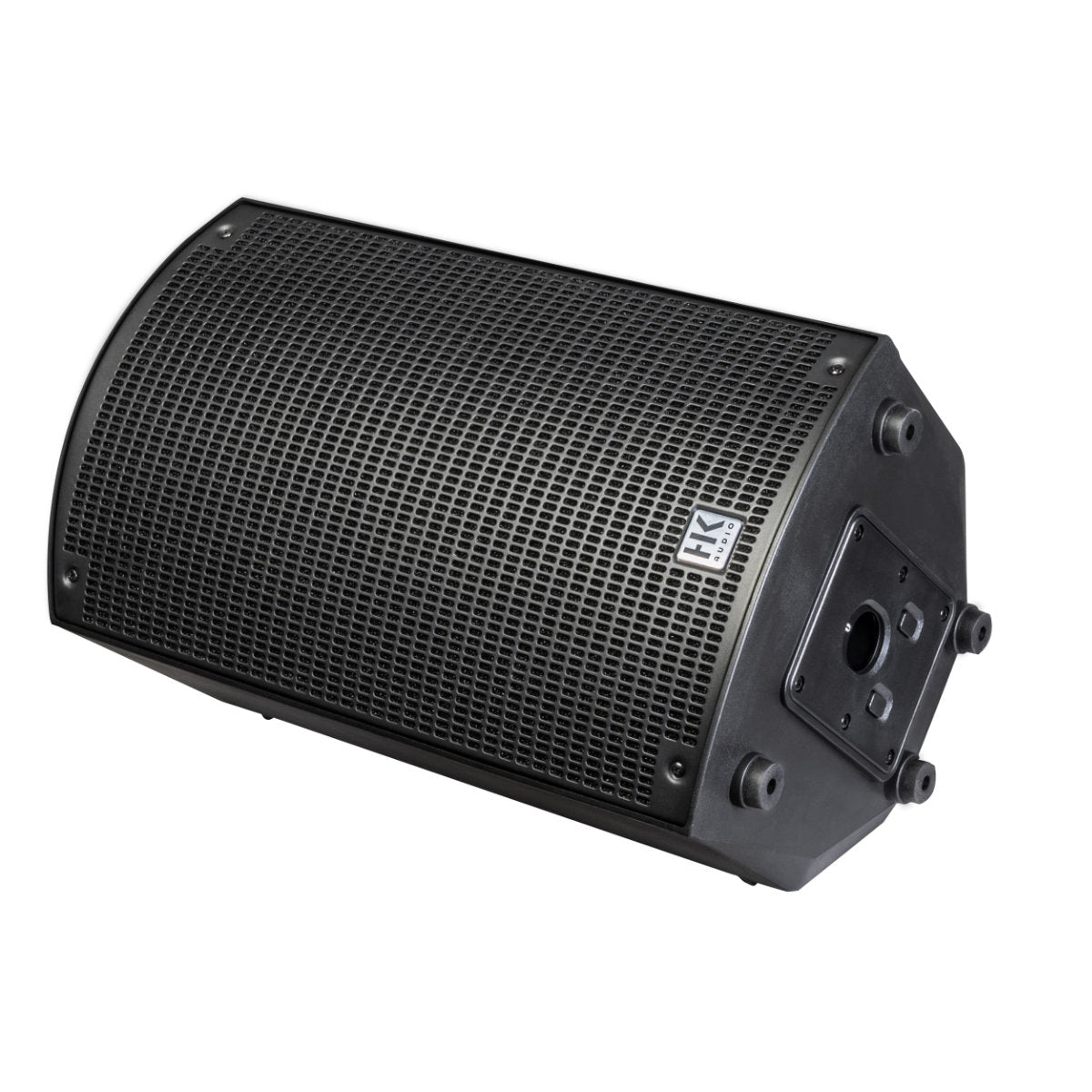

• Cabinet features/rigging: pole mount 35 mm, tiltable (0°/-7.5°), 3 x M10, monitor angle 35°

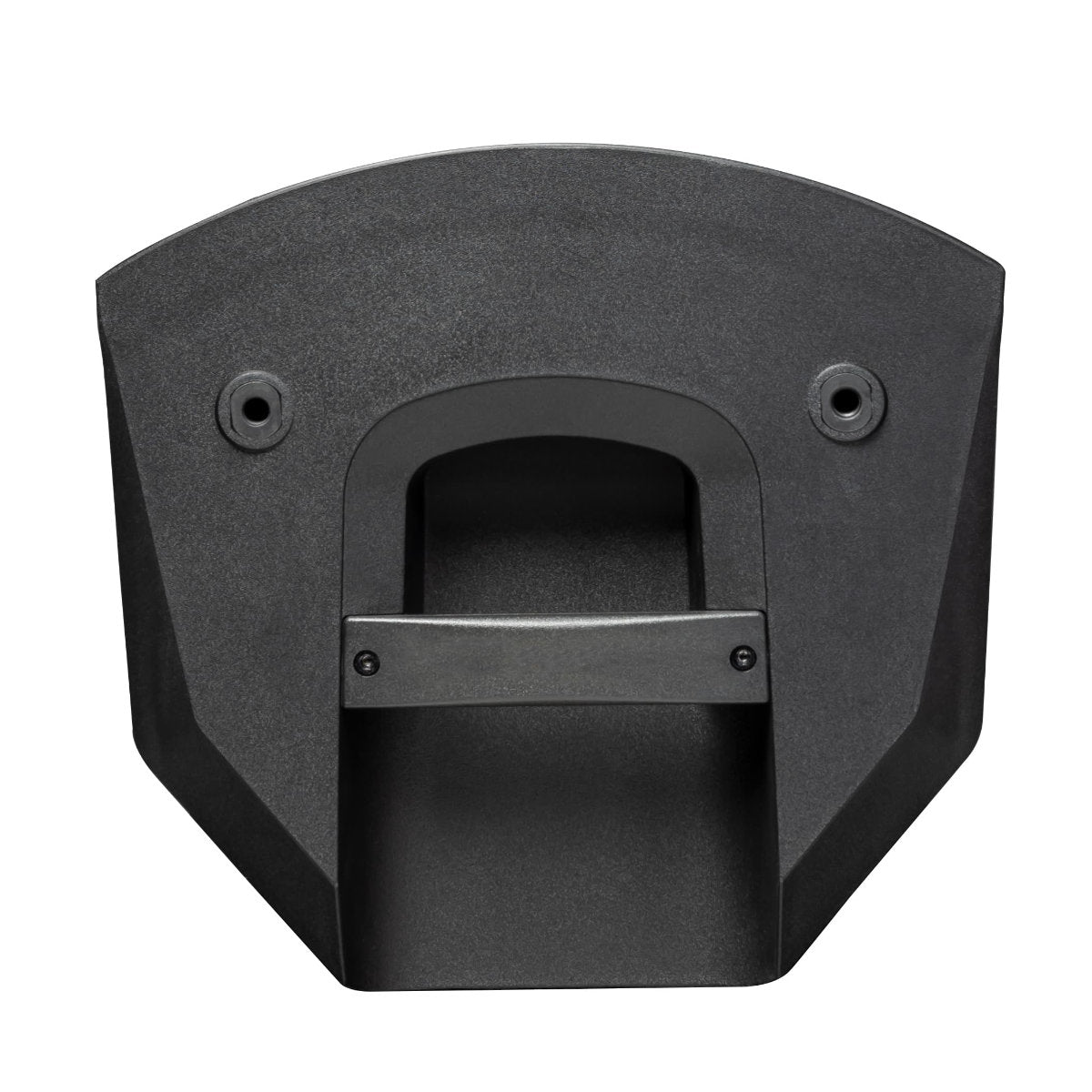

• Carrying handles1 x Single: Grip
• Cabinet material: plastic
• Color: Jet black (RAL 9005)
• Front grille: Steel front grille with anticorrosive coating and backed acoustic foam
• Dimensions (W x H x D), metric: 31 x 53.5 x 30 cm
• Dimensions (W x H x D), imperial: 12-7/32 x 21-1/16 x 11-13/16 inch
• Weight, metric: 11.5 kg
• Weight, imperial: 25.4 lbs
